HFC-227ea Fire Extinguisher Pipe System

HFC-227ea Fire Extinguisher Pipe System
HFC-227ea Fire Extinguisher Pipe System HFC-227ea Fire Extinguisher Pipe System HFC-227ea Fire Extinguisher Pipe System

Large Image :  HFC-227ea Fire Extinguisher Pipe System

Product Details:
Place of Origin: Guangzhou,China
Brand Name: Dingya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMQ4.2-120N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of system
Price: negotiable
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Detailed Product Description
Product Name: Fire Extinguisher Pipe System Filling Pressure: 4.2 MPa
Extinguishing Agent Filling Density: ≤950kg/m3 Discharge Time: ≤8s
Storage Device: ≤2kg Protect Area Temperature: 0℃~50℃

Pipe FM200 HFC-227ea Heptafluoropropane Gas Automatic Fire Extinguisher System





Model Storage Pressure Agent Volume Agent Inject Time Storage Device Remaining Start Time Protect Area Temperature

Storage Room Temperateure Requirements



QMQ4.2 / 70N 4.2Mpa ≤950kg/m³ ≤8s ≤2kg

Electromagnetic Start(DC24V/1.2A)

Mechanical Emergency Manual Start

0℃~50℃ 0℃~50℃
QMQ4.2 / 100N 4.2Mpa ≤950kg/m³ ≤8s ≤2kg 0℃~50℃ 0℃~50℃
QMQ4.2 / 120N 4.2Mpa ≤950kg/m³ ≤8s ≤2kg 0℃~50℃ 0℃~50℃
QMQ4.2 / 150N 4.2Mpa ≤950kg/m³ ≤8s ≤2kg 0℃~50℃ 0℃~50℃





Product Introduction:

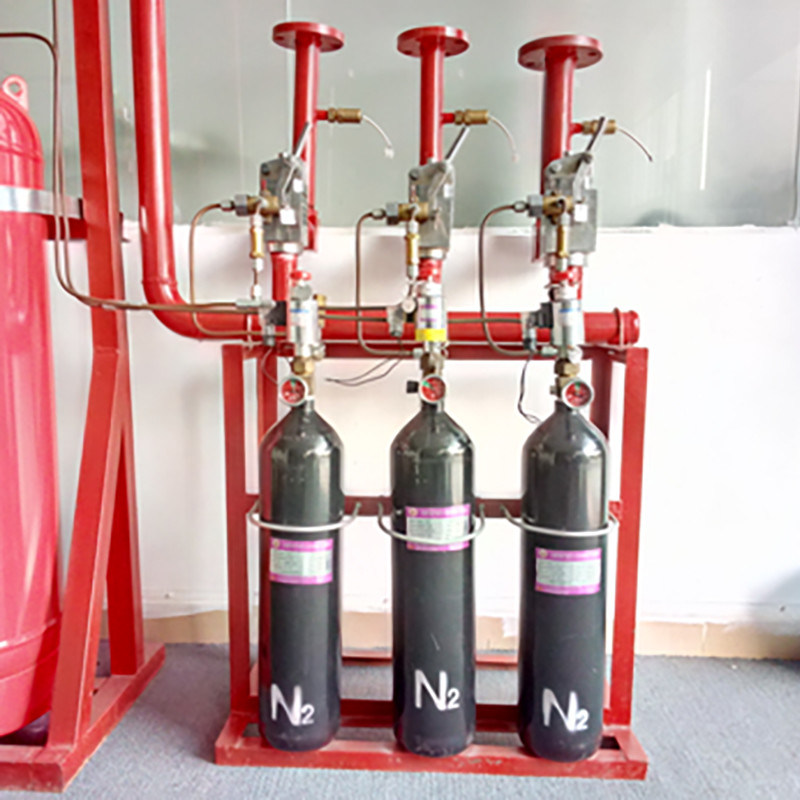

FM200 Gas Automatic Fire Extinguisher System consists of Cylinders,Container Valve,N2 Drive Bottle Group,Electromagnetic Drive Device,Selector Valve,Single Valve,Header Pipe,Connecting Pipe,Safety Relief Valve,Pressure Annunciator,Low Leakage High Seal Valve,Nozzle,High Pressure Pipe,High Pressure Pipe Fittings and so on.The Clean Agent (Gas) HFC-227ea Heptafluoropropane is Colorless,Odorless,Clean,Non-conductive,Low Toxicity,High Effective,non polluting and causes no damage to the atmospheric ozone layer.

The system is installed in a special seperate room and is connected through a pipe to the protected room.If there is a fire outbreak,the heat detector or smoke detector detects the fire and the gas is automatically sprinkled to the protected room through the pipe and stop the fire within 8 seconds.



Product Characteristics:

Clean,Environmental friendly,completely vaporized and left no residue in the atmosphere.

It is harmless to humans.

Good electrical insulation

Highly Effective

Economical



Product Advantages:

Good sealing and prevent leakage.

Beautiful appearance,fashion design,innovation

The stability is high,safe and reliable



Product Application:

Computer Room,Telecommunication room,Program control exchange machine room,

Laboratory,Precision instrument room,Painting workshop,Chemical warehouse

Oil storage,Clean workshop,Electronic workshop and other luxury equipment room

Archives,Library,Museum,Paper room,Data Room,Cultural center,Bank vault

Generator room,Power plant,Transformer room,Power supply room etc.

Substation,Power substation and other electric room

Telecast,Financial institutions,The government authority,Airport,Buildings,Quay,Garage etc.

Pipe HFC-227ea Fire Extinguisher System Technical Parameter:





This is our FM200 Fire Extinguishers cabinet that use the modern most advanced technology,very clean,no pollution to environment and room,it is very health to people’ body,it work effectively,safe,reliable and good design and outstanding performance.It is First choise products for fire extinguishers in the 21th century.



It is automatically working when there is a fire,discharge it and stop fire within 8 seconds.It is best suitable for your Computer room,precision instrument room,laboratory,Factory,transformer room,warehouse,generate plant,archives,library,museum,hospital,subway etc.



Welcome to contact us anytime,we will supply excellent quality and best service to you in time.Thank you very much for your best cooperation and support.
