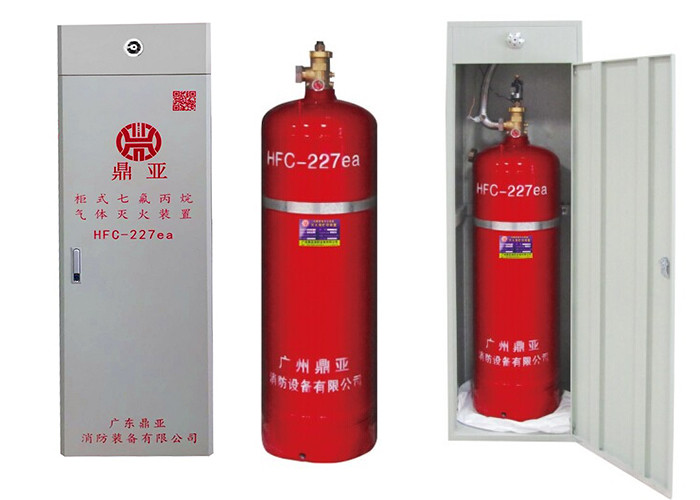

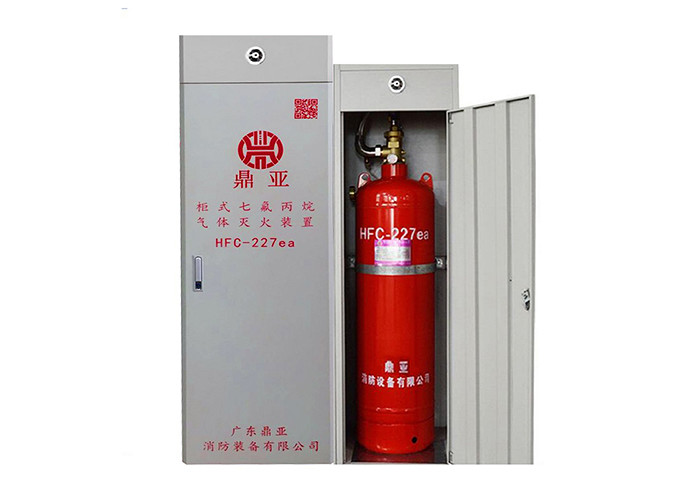

Fm200 Automatic Fire Extinguisher System

Fm200 Automatic Fire Extinguisher System
Fm200 Automatic Fire Extinguisher System Fm200 Automatic Fire Extinguisher System

Large Image :  Fm200 Automatic Fire Extinguisher System

Product Details:
Place of Origin: China
Brand Name: dingya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ100/2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of system
Price: negotiable
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 400 sets per month
Detailed Product Description
Spraying Time: ≤8s Power: DC24V/1.6A
Capacity Of Cylinder: 100L Type: Piped
Agent: Htc-227ea Actuation: Automatic Or Manual
Size: 450*500*1450mm Extinguishing Agent Filling Quantity: 100kg
Pressure: 2.5Mpa Start Method: Automatic/Manual

fm200 automatic cabinet fire extinguisher system 2.5Mpa 100kg hfc-227ea system





Specification Technical Parameter
Filling pressure 2.5Mpa
Relief pressure 5.0±0.225Mpa
Spraying time ≤8s
Working temperature 0~50℃
Power DC24V/1.6A
Max working pressure 4.2Mpa
Filling volume ≤100kg
Start Manual / Auto





FM200 Price is our TOP products.We are most Professional Fire Extinguisher Manafuturer,located in Guangzhou,China.

We can supply Automatic Fire Extinguisher below:

FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;

If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.

We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.

Thank you very much for your best cooperation and support!



Feature:

1.FM200 Price is our TOP products.We are most Professional Fire Extinguisher Manafuturer,located in Guangzhou,China.

We can supply different kinds of Automatic Fire Extinguisher below:

FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;

If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.

We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.

Thank you very much for your best cooperation and support!



Feature:

1.FM200 Price Vaporized completely in the atmosphere without residue and pollution.

2.Colorless,Odorless,non-conductive,insulation,lowest toxicity

3.Beautiful apperance,fashion design and reliable performance.

4.Application:Computer room,Switching Room,Precision Instrument Room,Factory,Bank,Hospital,Subway,TV Station,Railway Station,Museum,School,Institution,Laboratory,Library,Data Room,Power Factory,Archives etc.



Fm200(hfc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.

Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.




Applications:

Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

Competitive Advantage:

1. Effective firefighting in relatively small region

2. Simple assembly of device without pipeline

3. No extra space to store device

Working principle:

Here is the illustration of working principle to whole system,
