Product Details:
Payment & Shipping Terms:
|
Weight: | 150kg | Capacity Of Cylinder: | 150L |
---|---|---|---|
Dimension: | 550*550*1900 | Agent: | Htc-227ea(fm200) |
Voltage: | Dc24v/12a | Extinguishing Time: | ≤8s |
Pressure: | 4.2Mpa | Color: | Red & Ivory White Color Or As Customized |
Product Name: | FM200 Gas Fire Suppression System,fire Fighting System,FM200 System | Usage: | Fire Rescue System,Gas Fire Extinguishing,fire Extinguishing System |
High Light: | 150kg portable fire suppression system,150L fire fm 200 system,fm 200 portable fire extinguisher |

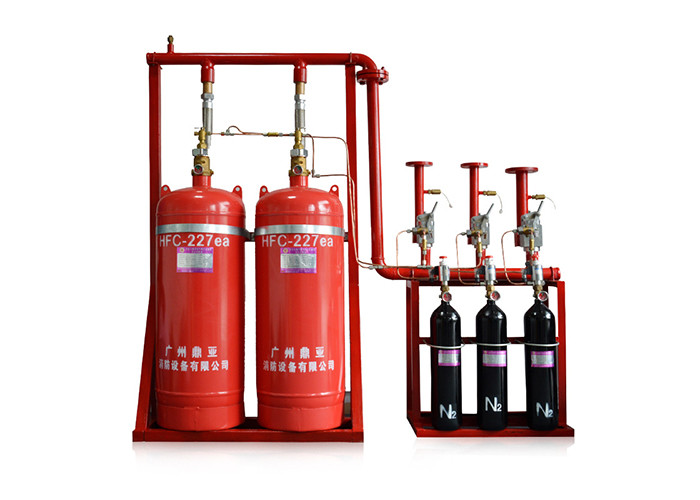

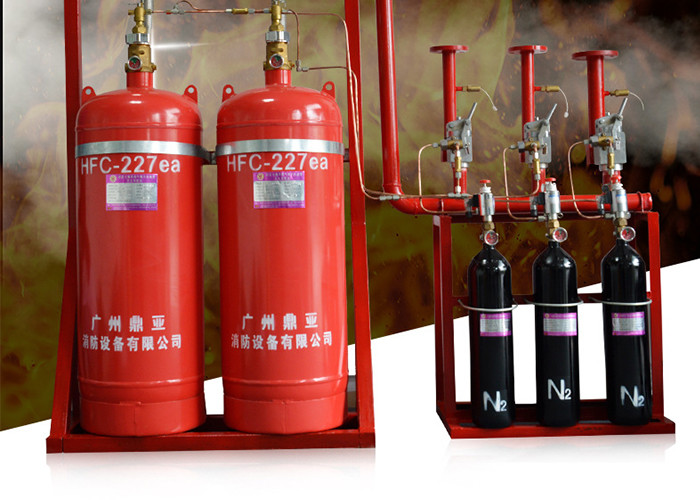

ndustrial Heptafluoropropane FM200 Fire Suppression System hfc-227ea GQQ150/2.5
specification | Technical Parameter |
Filling pressure | 4.2Mpa |
Relief pressure | 5.0±0.225Mpa |
Spraying time | ≤8s |
Working temperature | 0~50℃ |
Power | DC24V/1.6A |
max working pressure | 4.9Mpa |
capacity | 150L |
Personalized design | Yes |
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Compositions:
1. Mechanical parts: cylinder with container valve, cabinet, high pressure hose etc.
2. Electrical parts: smoke detector, heat detector, bell etc.
Competitive advantage:
1. Effective firefighting in relatively small region
2. Simple assembly of device without pipeline
3. No extra space to store device
4. Convenient transportation and easy installation
Attentions:
Users should make a calculation first to estimate the protected zone's volume and proportion, because the cabinet type fire suppression system can just cover proportion at most 500 squre metres and volume st most 1600 cubic metres.
Though this system is easy installation, if there are some problem, please call us to fix them and do not touch anything.
FM200 Price is our TOP products.We are most Professional Fire Extinguisher Manafuturer,located in Guangzhou,China.
We can supply Automatic Fire Extinguisher below:
FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;
If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.
We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.
Thank you very much for your best cooperation and support!
