Product Details:
Payment & Shipping Terms:
|
Use: | Fire Fighting | Name: | Fm200 Cylinder |
---|---|---|---|
Application: | FM200 System | Pressure: | High,Low,Low And Medium |
High Light: | fm200 fire extinguisher gas cylinder,fm200 red cylinder fire extinguisher |

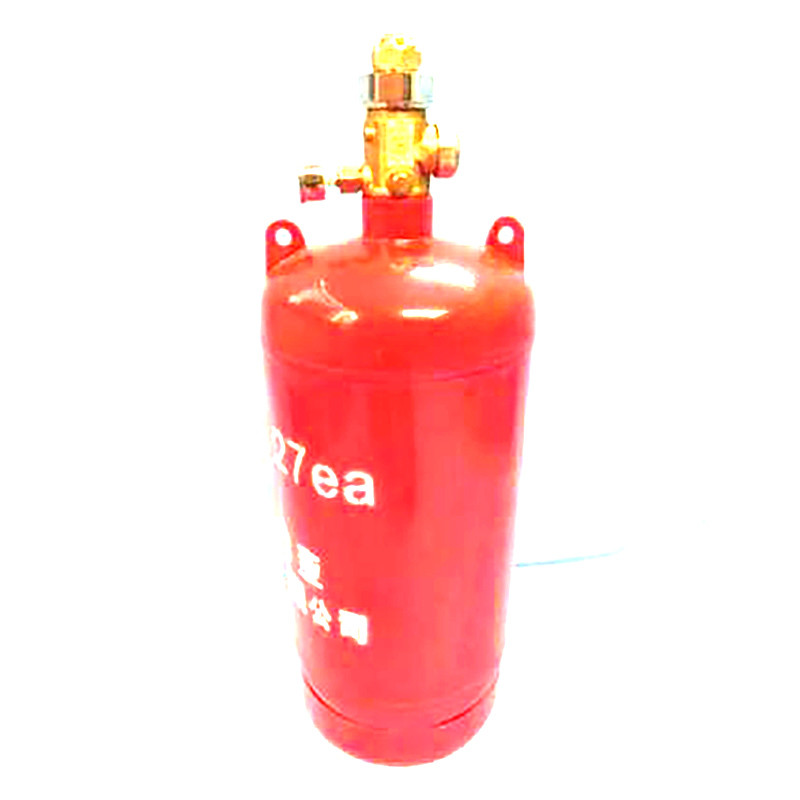

FM200 Cylinder
HFC-227ea is a clean extinguishing agent, which would completely vaporized in the air, and well insulated. Its total flooding mode is applicable to electric fire, liquid fire or fusible solid fire, solid surface fire, gas fire which gas supply is cut before extinguishing. And it is able to protect computer rooms, communication rooms, substation rooms, hi-tech device rooms generator rooms, gasoline storerooms, combustible chemical storerooms, libraries, data rooms, archives, treasuries, etc. We manufacture HFC-227ea system that is well structured, reliable, and widely applied to computer rooms, archives, program control exchange engine rooms, TV broadcast center, financial organizations and government departments.
40L | 70L | 90L | 100L | 120L | 150L | 180L | |
Nominal volume(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
Actual volume(L) | 40.5 | 70.5 | 90.5 | 100.5 | 120.6 | 150.5 | 180.6 |
Internal diameter(mm) | 300 | 350 | 350 | 350 | 350 | 400 | 400 |
Total length(mm) | 770 | 930 | 1140 | 1244 | 1454 | 1405 | 1644 |
Filling medium | FM200+nitrogen | ||||||
Filling capacity(kg) | 46.4 | 81.2 | 104.4 | 116 | 139.2 | 174 | 208.8 |
Designed thickness of cylinder(mm) | 5.4 | 6.3 | 6.3 | 6.3 | 6.3 | 7.2 | 7.2 |
Designed thickness of head(mm) | 4.8 | 5.7 | 5.7 | 5.7 | 5.7 | 6.5 | 6.5 |
Material standard | GB6653-2008 | ||||||
Specified value of chemical ingredients of material |
C≤0.20% Si≤0.35% Mn≤1.50% P≤0.025% S≤0.015% P+S≤0.04% |
||||||
Material strength specified value |
Rel ≥345MPa Rm 510~620MPa
|
||||||
Net weight of cylinder(excluding detachable part)(kg) | 38 | 63 | 76 | 82.5 | 95.5 | 122 | 138 |
Test of hydraulic pressure | 8.4MPa | ||||||
Test of sealing pressure | 5.6MPa |
About Ding Ya:
GUANDONG Ding Ya Fire Equipment Co., Ltd. (Called “Ding Ya”),is a Professional Fire Extinguisher manufacturer for more than 10 years.The company which is registered and approved by the Chinese Government is situated at No.3 Dongjing Road,Donghuagongye Village,Renhe Town,Baiyun District,Guangzhou,China.We insist on “Excellent Quality,Perfect Service and Practical price”.
All our products are made according to National and International Standard and are regularly inspected by the Quality monitoring and testing centre for Fire extinguishing ,such as Chinese Government CCC Certificate,EU CE Certificate and ISO9001:2015 Quality Management System.
"Work hard with honesty" is our working attitude and basic principles.We summarized our Enterprise Spirit as "Struggle,Innovation,Harmony and Development,Honest,Gratitude,Unity and Love".WE won several National and International awards and recognition.We have agents from all over the world and we welcome new agents and partners to work together with us to contribute in the Fire Extinguisher Industry.
