Product Details:
Payment & Shipping Terms:
|
Product Name: | Fire Extinguisher Pipe System | Filling Pressure: | 4.2 MPa |
---|---|---|---|
Extinguishing Agent Filling Density: | ≤950kg/m3 | Discharge Time: | ≤8s |
Storage Device: | ≤2kg | Protect Area Temperature: | 0℃~50℃ |
High Light: | HFC 227ea clean agent system,2kg clean agent system,2kg clean agent fire suppression system |
Pipe FM200 HFC-227ea Heptafluoropropane Gas Automatic Fire Extinguisher System
Product Introduction:

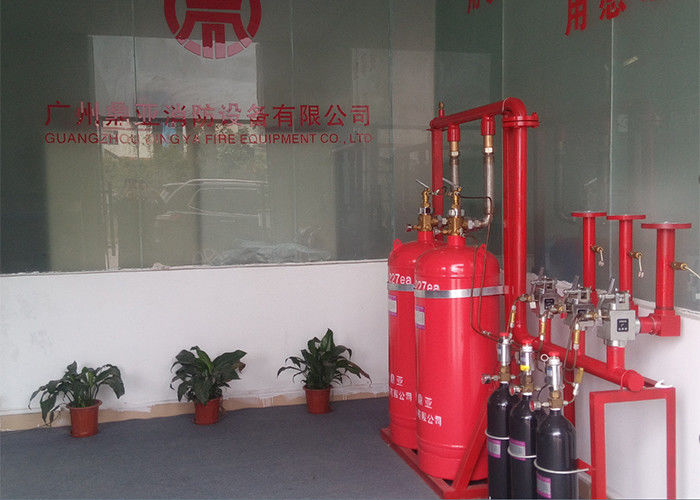

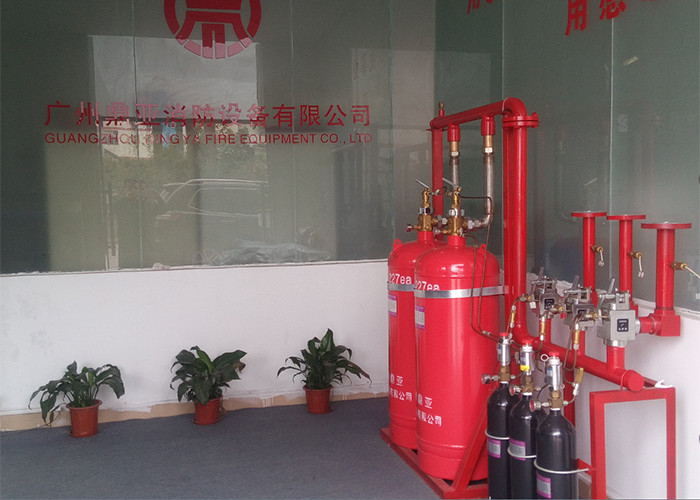

FM200 Gas Automatic Fire Extinguisher System consists of Cylinders,Container Valve,N2 Drive Bottle Group,Electromagnetic Drive Device,Selector Valve,Single Valve,Header Pipe,Connecting Pipe,Safety Relief Valve,Pressure Annunciator,Low Leakage High Seal Valve,Nozzle,High Pressure Pipe,High Pressure Pipe Fittings and so on.The Clean Agent (Gas) HFC-227ea Heptafluoropropane is Colorless,Odorless,Clean,Non-conductive,Low Toxicity,High Effective,non polluting and causes no damage to the atmospheric ozone layer.
The system is installed in a special seperate room and is connected through a pipe to the protected room.If there is a fire outbreak,the heat detector or smoke detector detects the fire and the gas is automatically sprinkled to the protected room through the pipe and stop the fire within 8 seconds.
Model | Storage Pressure | Agent Volume | Agent Inject Time | Storage Device Remaining | Start Time | Protect Area Temperature |
Storage Room Temperateure Requirements
|
QMQ4.2 / 70N | 4.2Mpa | ≤950kg/m³ | ≤8s | ≤2kg |
Electromagnetic Start(DC24V/1.2A) Mechanical Emergency Manual Start |
0℃~50℃ | 0℃~50℃ |
QMQ4.2 / 100N | 4.2Mpa | ≤950kg/m³ | ≤8s | ≤2kg | 0℃~50℃ | 0℃~50℃ | |
QMQ4.2 / 120N | 4.2Mpa | ≤950kg/m³ | ≤8s | ≤2kg | 0℃~50℃ | 0℃~50℃ | |
QMQ4.2 / 150N | 4.2Mpa | ≤950kg/m³ | ≤8s | ≤2kg | 0℃~50℃ | 0℃~50℃ |
Product Characteristics:
Clean,Environmental friendly,completely vaporized and left no residue in the atmosphere.
It is harmless to humans.
Good electrical insulation
Highly Effective
Economical
Product Advantages:
Good sealing and prevent leakage.
Beautiful appearance,fashion design,innovation
The stability is high,safe and reliable
Product Application:
Computer Room,Telecommunication room,Program control exchange machine room,
Laboratory,Precision instrument room,Painting workshop,Chemical warehouse
Oil storage,Clean workshop,Electronic workshop and other luxury equipment room
Archives,Library,Museum,Paper room,Data Room,Cultural center,Bank vault
Generator room,Power plant,Transformer room,Power supply room etc.
Substation,Power substation and other electric room
Telecast,Financial institutions,The government authority,Airport,Buildings,Quay,Garage etc.
Pipe HFC-227ea Fire Extinguisher System Technical Parameter:
This is our FM200 Fire Extinguishers cabinet that use the modern most advanced technology,very clean,no pollution to environment and room,it is very health to people’ body,it work effectively,safe,reliable and good design and outstanding performance.It is First choise products for fire extinguishers in the 21th century.
It is automatically working when there is a fire,discharge it and stop fire within 8 seconds.It is best suitable for your Computer room,precision instrument room,laboratory,Factory,transformer room,warehouse,generate plant,archives,library,museum,hospital,subway etc.
Welcome to contact us anytime,we will supply excellent quality and best service to you in time.Thank you very much for your best cooperation and support.
