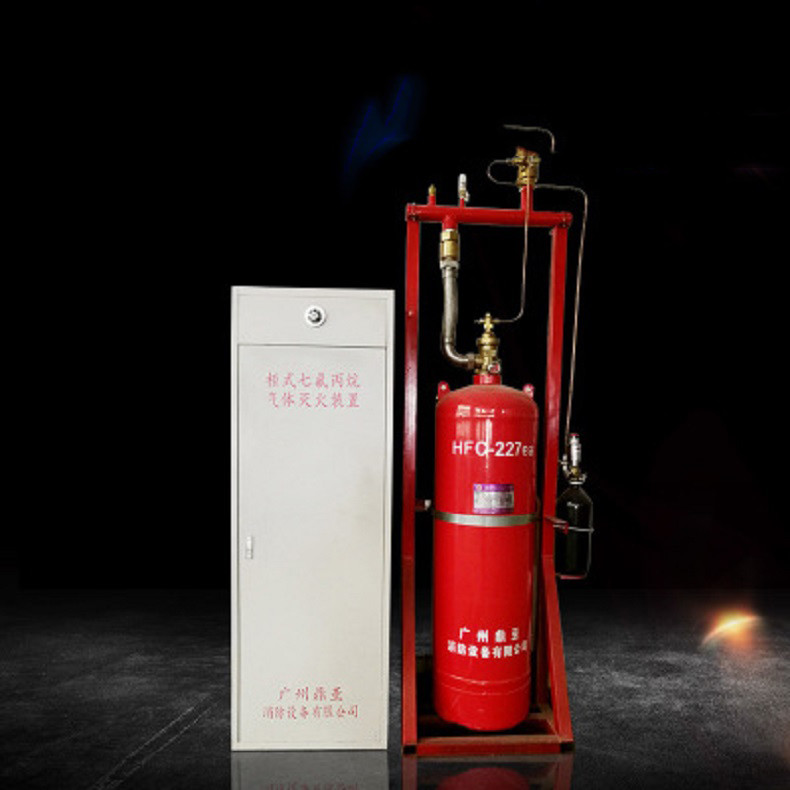

No Pollution 40L Gas Based Fire Suppression System

No Pollution 40L Gas Based Fire Suppression System
No Pollution 40L Gas Based Fire Suppression System No Pollution 40L Gas Based Fire Suppression System

Large Image :  No Pollution 40L Gas Based Fire Suppression System

Product Details:
Place of Origin: guangzhou,china
Brand Name: dingya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ40 / 2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of system
Price: negotiable
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Detailed Product Description
Product Name: Fm200 Cabinet Systems Storage Pressure: 2.5Mpa
Working Temperature: 0-50 Degree Storage Bottle Material: HP345 Steel Welding Gas Cylinder
Executive Standard: GB16670 - 2006 Capacity: 40
High Light:

hfc 227 fire extinguisher

,

40l fire suppression equipment

,

Hfc 227ea gas fire extinguishing system

Cabinet HFC-227ea Fire Extinguisher Device



Product Introduction:

HFC-227ea gas fire extinguishing device use clean gas-HEPTAFLUOROPROPANE as fire extinguishing agent,the fire extinguishing principle is to stop fire through the inerting active free radicals with high efficiency.

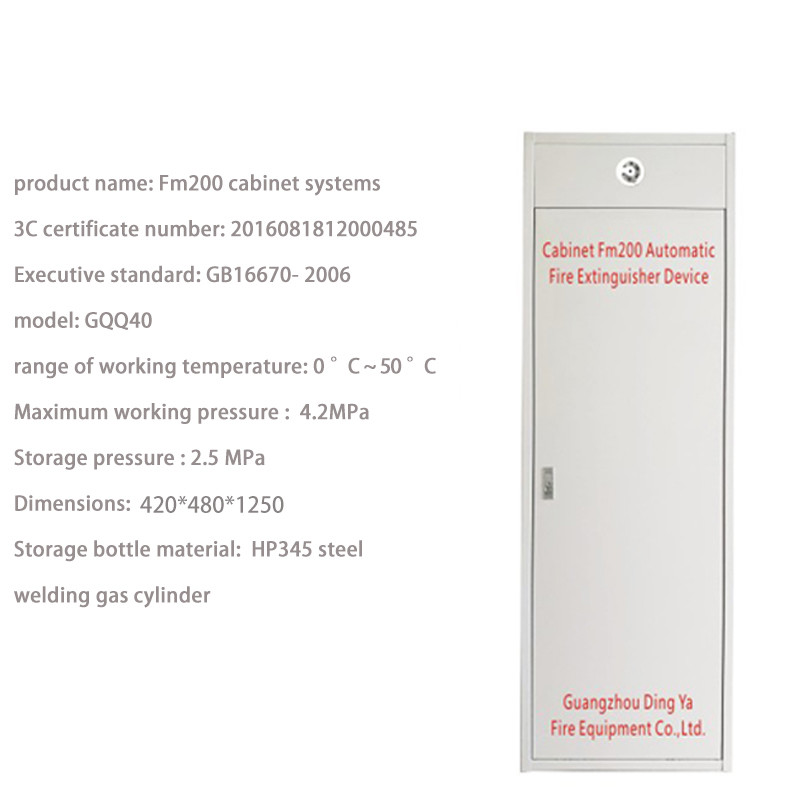

product name: Fm200 cabinet systems

3C certificate number: 2016081812000485

Executive standard: GB16670 - 2006

range of working temperature: 0 °C ~ 50 °C

Maximum working pressure : 4.2MPa

Storage pressure : 2.5 MPa

Storage bottle material: HP345 steel welding gas cylinder



Cabinet HFC-227ea Fire Extinguisher System Technical Parameter:

Model Storage Device Specification Agent Volume Outer Size L*W*H(mm) Storage Pressure Discharge Time Start Voltage/Current Operating Temperature Range
GQQ40 / 2.5 40L ≤40kg 420*480*1250 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ70 / 2.5 70L ≤70kg 450*500*1450 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ90 / 2.5 90L ≤90kg 480*520*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ100 / 2.5 100L ≤100kg 480*520*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ120 / 2.5 120L ≤120kg 520*580*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ150/2.5 150L ≤150kg 520*580*1830 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ180/2.5 180L ≤180kg 520*580*1830 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃





Product Advantage:

Colorless,odorless,clean,non - conducting,low toxicity,high efficiency,no pollution to the protected objects,especially no damage to the atmospheric ozone layer.In the first generation of halon replacements,FM200 HFC-227ea is with the best comprehensive performance.

Easy-Carry and Movable,Flexible and easy to install,beautiful appearance,design fashion,good sealing,good leak prevention,it is a kind of fire extinguishing equipment without Tube.

Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.

No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.
