Product Name: | Fm200 Cabinet Systems | Storage Pressure: | 2.5Mpa |
---|---|---|---|
Working Temperature: | 0-50 Degree | Storage Bottle Material: | HP345 Steel Welding Gas Cylinder |
Executive Standard: | GB16670 - 2006 | Capacity: | 40 |
High Light: | 40kg fire extinguisher device,40l fire suppression equipment,Hfc 227ea gas fire extinguishing system |

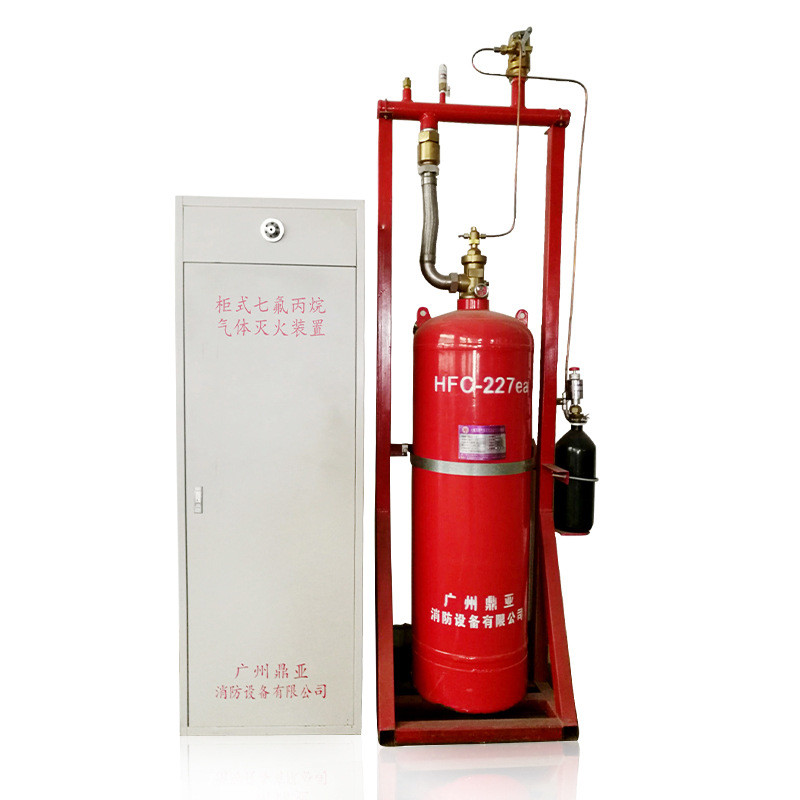

Cabinet HFC-227ea Fire Extinguisher Device
Feature:
1. FM200 Price Vaporized completely in the atmosphere without residue and pollution.
2. Colorless,Odorless,non-conductive,insulation,lowest toxicity
3. Beautiful apperance,fashion design and reliable performance.
4. Application:Computer room,Switching Room,Precision Instrument Room,Factory,Bank,Hospital,Subway,TV Station,Railway Station,Museum,School,Institution,Laboratory,Library,Data Room,Power Factory,Archives etc.
Model | Storage Device Specification | Agent Volume | Outer Size L*W*H(mm) | Storage Pressure | Discharge Time | Start Voltage/Current | Operating Temperature Range |
GQQ40 / 2.5 | 40L | ≤40kg | 420*480*1250 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ70 / 2.5 | 70L | ≤70kg | 450*500*1450 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ90 / 2.5 | 90L | ≤90kg | 480*520*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ100 / 2.5 | 100L | ≤100kg | 480*520*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ120 / 2.5 | 120L | ≤120kg | 520*580*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ150/2.5 | 150L | ≤150kg | 520*580*1830 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ180/2.5 | 180L | ≤180kg | 520*580*1830 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
product name: Fm200 cabinet systems
3C certificate number: 2016081812000485
Executive standard: GB16670 - 2006
range of working temperature: 0 °C ~ 50 °C
Maximum working pressure : 4.2MPa
Storage pressure : 2.5 MPa
Storage bottle material: HP345 steel welding gas cylinder
Product Introduction:
HFC-227ea gas fire extinguishing device use clean gas-HEPTAFLUOROPROPANE as fire extinguishing agent,the fire extinguishing principle is to stop fire through the inerting active free radicals with high efficiency.
Product Advantage:
Colorless,odorless,clean,non - conducting,low toxicity,high efficiency,no pollution to the protected objects,especially no damage to the atmospheric ozone layer.In the first generation of halon replacements,FM200 HFC-227ea is with the best comprehensive performance.
Easy-Carry and Movable,Flexible and easy to install,beautiful appearance,design fashion,good sealing,good leak prevention,it is a kind of fire extinguishing equipment without Tube.
Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.
No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.
