Non - Conducting 100L FM200 Fire Suppression System

Non - Conducting 100L FM200 Fire Suppression System
Non - Conducting 100L FM200 Fire Suppression System Non - Conducting 100L FM200 Fire Suppression System

Large Image :  Non - Conducting 100L FM200 Fire Suppression System

Product Details:
Place of Origin: guangzhou,china
Brand Name: dingya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ100-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of system
Price: negotiable
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Detailed Product Description
Product Name: Fm200 Cabinet Systems Storage Pressure: 2.5Mpa
Working Temperature: 0-50 Degree Storage Bottle Material: HP345 Steel Welding Gas Cylinder
Executive Standard: GB16670 - 2006 Capacity: 100
High Light:

hfc227ea fire suppression system

,

fm200 fire extinguisher

,

heptafluoropropane fire extinguisher

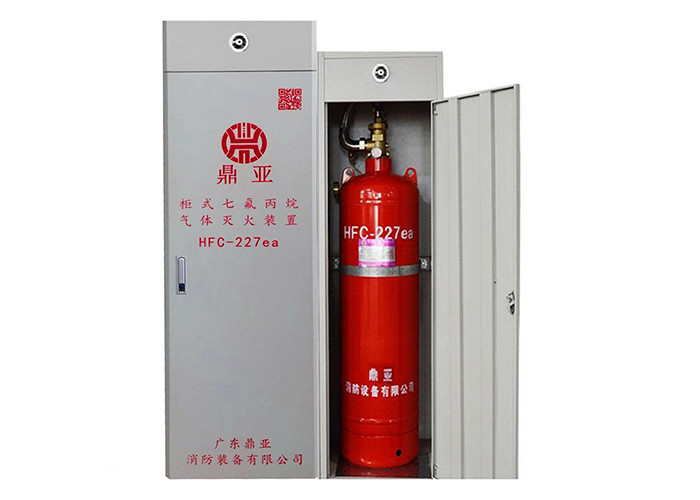

Cabinet HFC-227ea Fire Extinguisher Device



product name: Fm200 cabinet systems



3C certificate number: 2016081812000485

Executive standard: GB16670 - 2006

range of working temperature: 0 °C ~ 50 °C

Maximum working pressure : 4.2MPa

Storage pressure : 2.5 MPa

Storage bottle material: HP345 steel welding gas cylinder



Cabinet HFC-227ea Fire Extinguisher System Technical Parameter:

Model Storage Device Specification Agent Volume Outer Size L*W*H(mm) Storage Pressure Discharge Time Start Voltage/Current Operating Temperature Range
GQQ40 / 2.5 40L ≤40kg 420*480*1250 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ70 / 2.5 70L ≤70kg 450*500*1450 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ90 / 2.5 90L ≤90kg 480*520*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ100 / 2.5 100L ≤100kg 480*520*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ120 / 2.5 120L ≤120kg 520*580*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ150/2.5 150L ≤150kg 520*580*1830 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ180/2.5 180L ≤180kg 520*580*1830 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃





Product Introduction:

HFC-227ea gas fire extinguishing device use clean gas-HEPTAFLUOROPROPANE as fire extinguishing agent,the fire extinguishing principle is to stop fire through the inerting active free radicals with high efficiency.



Product Advantage:

Colorless,odorless,clean,non - conducting,low toxicity,high efficiency,no pollution to the protected objects,especially no damage to the atmospheric ozone layer.In the first generation of halon replacements,FM200 HFC-227ea is with the best comprehensive performance.

Easy-Carry and Movable,Flexible and easy to install,beautiful appearance,design fashion,good sealing,good leak prevention,it is a kind of fire extinguishing equipment without Tube.

Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.

No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.
