Cylinder Capacity: | 40L | Storage Bottle Material: | HP345 Steel Welding Gas Cylinder |
---|---|---|---|
Material: | Cylinder,stainless Iron | Usage: | Fire Rescue System,Gas Fire Extinguishing,fire Extinguishing System |
Storage Pressure: | 2.5Mpa | Executive Standard: | GB16670 - 2006 |
Capacity: | 150/70 | Power: | AC220V/DC24V/1A |
Working Temperature: | 0-50 Degree | ||
High Light: | 40L FM 200 Suppression System,Hfc-227ea FM 200 Suppression System |

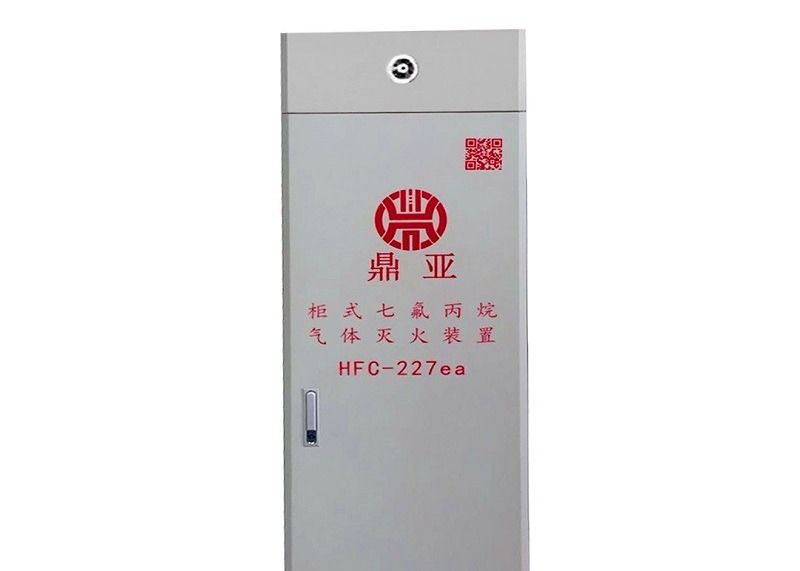

40L Fire Detection And FM-200 Suppression System Hfc-227ea Cabinet
Cabinet-type heptafluoropropane device has the advantage of convenient and flexible installation. Although there are installation methods on the Internet, it involves wiring and other reasons, so professional installers should try their best to install it so as to avoid the loss of non-spraying. The following methods are for professional installers' reference, and should be adjusted according to actual conditions, not as absolute methods.
1. Move the bottle group of heptafluoropropane gas into the cabinet body with the label facing the front. (Be sure to move forward from left to right to prevent the cylinder from falling down).
2. Install the nozzle to the opening above the cabinet.
3. Both ends of the metal hose are respectively connected to the nozzle and the air outlet of the container valve (one end of the metal hose with elbow is linked with the container valve).
4. Wrap the raw material tape around the thread of the information feedback device and install it on the 1/2 base of the metal hose elbow.
5. Connect the pull rod with the hoop, clamp the pull rod at the opening of the cabinet crossbeam, and tighten the nut at the front end with a T-shaped sleeve.
6. Install the electromagnetic driving device at the top of the container valve.
7. The pressure gauge is wrapped with raw material tape and installed at the pressure gauge of the container valve.
8. After installation and fixation, if the pressure gauge does not display, the hexagonal nut behind the pressure gauge can be loosened counterclockwise by 1/8-1/4 turn with a adjustable wrench to loosen the sealing core to display the actual pressure in the bottle, and then tighten it (to prevent slow leakage).
9. Connect the wires on the signal feedback device and electromagnetic drive device to the corresponding positions of the wiring block. (wiring when alarm installation and debugging is completed)
Note: after the whole project is accepted and debugged, pull out the safety pin at the lower end of the solenoid valve
Model | Storage Device Specification | Agent Volume | Outer Size L*W*H(mm) | Storage Pressure | Discharge Time | Start Voltage/Current | Operating Temperature Range |
GQQ40 / 2.5 | 40L | ≤40kg | 420*480*1250 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ70 / 2.5 | 70L | ≤70kg | 450*500*1450 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ90 / 2.5 | 90L | ≤90kg | 480*520*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ100 / 2.5 | 100L | ≤100kg | 480*520*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ120 / 2.5 | 120L | ≤120kg | 520*580*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ150/2.5 | 150L | ≤150kg | 520*580*1830 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ180/2.5 | 180L | ≤180kg | 520*580*1830 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
For example, a generator room need to use the fm200 / HFC - 227 ea of seven fluorin propane as fire prevention solutions; If you use a cabinet type, so we only need to use a few cabinet extinguishing equipment in the room, then they are evenly placed in the room, in the event of fire, fire extinguishing agent will from cabinet nozzle (the nozzle at the top of the rack) in the discharge direct fire, installation is convenient; If you use the pipe type fire extinguishing system, you may need to separate a gas cylinder storage (cylinder), and then put these cylinders in gas storage chamber (cylinder), and then use the pipeline network connect it to the ceiling of the room, and set up dozens of nozzle on the ceiling of the room. Obviously, the cabinet type has its own advantages and the piping system is not.
In China, the cabinet type has been recognized by the market, and the China fire protection association is highly recommended, we also think that it will gradually be recognized in the international market and recommend.
So far, from Bangladesh, South Africa, Nigeria, Brazil, the united Arab emirates, Vietnam, myanmar and other places of some customers also because in the project use the tripod machine cabinet of HFC - 227 ea fire extinguishing system, all equipment after installation give a high evaluation, they think it is an innovation.
About Dingya
GUANDONG Ding Ya Fire Equipment Co., Ltd. (Called “Ding Ya”),is a Professional Fire Extinguisher manufacturer for more than 10 years.The company which is registered and approved by the Chinese Government is situated at No.3 Dongjing Road,Donghuagongye Village,Renhe Town,Baiyun District,Guangzhou,China.We insist on “Excellent Quality,Perfect Service and Practical price”.
All our products are made according to National and International Standard and are regularly inspected by the Quality monitoring and testing centre for Fire extinguishing ,such as Chinese Government CCC Certificate,EU CE Certificate and ISO9001:2015 Quality Management System.
"Work hard with honesty" is our working attitude and basic principles.We summarized our Enterprise Spirit as "Struggle,Innovation,Harmony and Development,Honest,Gratitude,Unity and Love".WE won several National and International awards and recognition.We have agents from all over the world and we welcome new agents and partners to work together with us to contribute in the Fire Extinguisher Industry.
The main characteristics of the cabinet-type heptafluoropropane fire extinguishing device are high fire extinguishing efficiency, fast speed, easy installation of engineering projects, space saving, economical and practical, and no special bottle storage room is required.

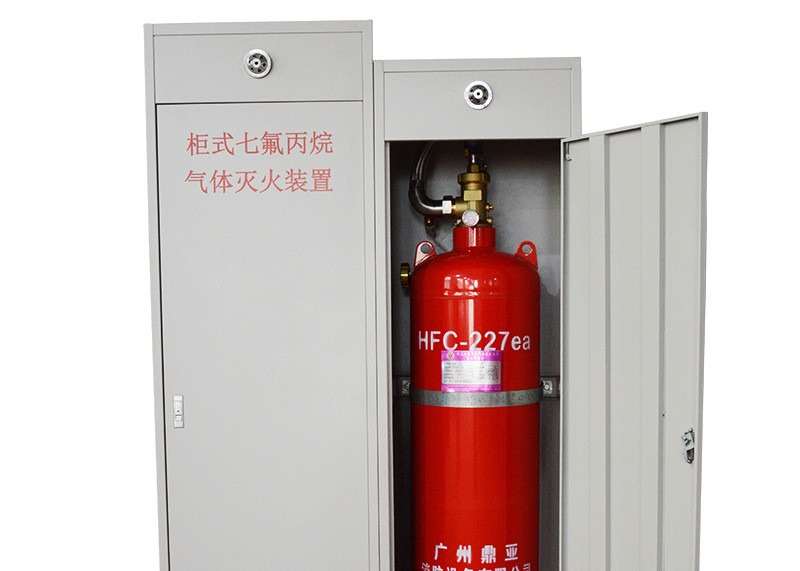

The cabinet type heptafluoropropane fire extinguishing device is composed of heptafluoropropane cylinders, container valves, electromagnetic drive devices, connecting pipes, pressure signals, nozzles and other components. The product has passed 3C compulsory certification
Note: gas fire alarm system including: gas fire control host, smoke detector, temperature detector, gas lamp, manual call button or deflated lights, maintenance switch, fire alarm and ventilation equipment, etc.
1.2 system installation
Cabinet extinguishing system installation location shall meet the following requirements:
(1) the environment temperature 0 ℃ ~ 50 ℃, and a dry, well ventilated;
(2) must not contain any explosive, conductive dust in the air and corrosion parts of harmful substances, otherwise must be preserved, device shall not by vibration and impact;
(3) the whole cabinet put oneself in another's position must be able to install a smooth, not allowed to tilt;
(4) when fire protective zone should be kept closed condition, other than the pressure mouth opening, and for the protection of the ventilator and fire damper in the ventilation pipe, the discharge of seven fluorin propane before, should be close;
(5) when equipped with outside elastic door closers or clicks, if its open mouth area of not less than the pressure calculation area, not the set pressure.
(6) is installed in the position in the protective zone should be chosen to avoid close to the heat source and direct sunlight exposure, and close to the wall installation. Nozzle jet direction should be toward the protection zones.
When the system installation, should be conducted in accordance with the following order: place the cabinet put oneself in another's position specified in the protected area.
Extinguisher bottle group to be included in the cabinet put oneself in another's position, the position and centered between the into can not produce too big impact, shall not make bottle group of dumping.
With coupling nut connecting piping components and bottle container valve outlet, pay attention to the container valve outlet connections need to coupling nut screw onto a tube (the left-hand thread) on the road, screwing in depth for connecting pipe sealing circular arc surface and the right end of coupling nut thread bottom basic coincidence, then the right end thread and container valve outlet connections (hand tighten) of seven fluorin propane before, should be close;
(5) when equipped with outside elastic door closers or clicks, if its opening area of not less than the pressure release
Mouth computing area, and not the other set pressure.
Observe whether the nozzle tube and cabinet put oneself in another's position of nozzle hole is, if not is adjustable connecting hoop for, at the same time pay attention to the direction of connecting hoop pressure switch on, must not make the direction of the pressure switch is before or after, regulating and fasten the pipeline in the component.
Connect the nozzle tube do auxiliary seal processing (tie ribbons or the sealing glue) and install the nozzle. Fine-tuning extinguisher bottle set position, and make it on the cabinet put oneself in another's position in the back wall and.
Installation of hoop and link up with the fixed bottle groups.
Wrench tight coupling nut.
Install pressure switch do auxiliary seal after processing to the pressure switch seat; And the electromagnetic drive installed on the container valve, locked cupboard door. Installed.
Before installation must read the associated with the device specification, familiar with engineering design. Ensure the extinguishing equipment layout and design drawings, complete parts and comply with the design requirements
