180L FM200 Clean Agent Fire Suppression System HFC-227

180L FM200 Clean Agent Fire Suppression System HFC-227
180L FM200 Clean Agent Fire Suppression System HFC-227 180L FM200 Clean Agent Fire Suppression System HFC-227 180L FM200 Clean Agent Fire Suppression System HFC-227 180L FM200 Clean Agent Fire Suppression System HFC-227 180L FM200 Clean Agent Fire Suppression System HFC-227

Large Image :  180L FM200 Clean Agent Fire Suppression System HFC-227

Product Details:
Place of Origin: guangzhou,china
Brand Name: Ding Ya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ180-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 3 set of system
Price: negotiable
Packaging Details: Plywood case or box case..
Delivery Time: 8-86 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 7876 sets per week
Detailed Product Description
Gas Injection Time: ≤10(s) Working Temperature: 0-50 Degree
Operating Voltage: DC24V,24V DC Discharge Time: ≤10s
Capacity: 120L Storage Pressure: 2.5Mpa/////F
System Type: Network Type Color: Red
Usage: Fire Rescue System,Gas Fire Extinguishing,fire Extinguishing System Filling Density: ≤950kg/m3
High Light:

180L Fire Suppression System

,

FM200 Fire Suppression System

,

HFC-227 Fire Suppression System



180L FM-200 Clean Agent Fire Suppression System, HFC-227,Fire Suppression Fm 200,Fire Safety Solutions



180L FM-200 Clean Agent Fire Suppression System, HFC-227,fire suppression fm 200,fire safety solutions

Heptafluoropropane is FM200, and the total flooding fire extinguishing design is adopted, and the chemical fire extinguishing method is the main fire extinguishing method. There is no harm to human body in the state of no fire within the designed concentration range! (The design standard is generally 10%, and the toxic reaction is 10.5%.) However, first of all, you need to understand the working mode of the system, so that the problems will be solved in a targeted manner. Secondly, it is suggested that when a fire is found to need to be extinguished, whether it is automatic or manual, the personnel should be evacuated firs.180L FM200 Clean Agent Fire Suppression System HFC-227 0

Model Storage Device Specification Agent Volume Outer Size L*W*H(mm) Storage Pressure Discharge Time Start Voltage/Current Operating Temperature Range
GQQ40 / 2.5 40L ≤40kg 420*480*1250 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ70 / 2.5 70L ≤70kg 450*500*1450 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ90 / 2.5 90L ≤90kg 480*520*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ100 / 2.5 100L ≤100kg 480*520*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ120 / 2.5 120L ≤120kg 520*580*1700 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ150/2.5 150L ≤150kg 520*580*1830 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃
GQQ180/2.5 180L ≤180kg 520*580*1830 2.5Mpa ≤8s DC24V/1.2V 0℃~+50℃


 180L FM200 Clean Agent Fire Suppression System HFC-227 1

Relatively speaking, network type of gas fire extinguishing system defect is installed is very complex, and need a lot of pipes to install the equipment, in addition, it takes a lot of space and no save space. (of course, you can let ding fire to complete the installation and debugging, the tripod with two handles the fire across the country have the construction team, can complete the entire fire extinguishing system for material, we provide one-stop service of gas fire extinguishing system, cabinet or pipe network system, design and production installation maintenance one-stop service)

 180L FM200 Clean Agent Fire Suppression System HFC-227 2
Product Advantage:

Considering the above factors, in China, our engineers have developed a new type of fm200 / HFC - 227 ea fire extinguishing system, we call it "cabinet fm200 / HFC - 227 ea fire extinguishing device", in other words, the "no tubular fm200 / HFC - 227 ea fire extinguishing device", what is its action? The meaning is: will the cylinder containing HFC - 227 ea fire extinguishing agent into the special design of the cabinet, and set the cabinet with fire nozzle, and the equipment is installed directly in the protection zone of any position.

180L FM200 Clean Agent Fire Suppression System HFC-227 3

Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.

No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.

180L FM200 Clean Agent Fire Suppression System HFC-227 4
About Dingya
GUANDONG Ding Ya Fire Equipment Co., Ltd. (Called “Ding Ya”),is a Professional Fire Extinguisher manufacturer for more than 10 years.The company which is registered and approved by the Chinese Government is situated at No.3 Dongjing Road,Donghuagongye Village,Renhe Town,Baiyun District,Guangzhou,China.We insist on “Excellent Quality,Perfect Service and Practical price”.
All our products are made according to National and International Standard and are regularly inspected by the Quality monitoring and testing centre for Fire extinguishing ,such as Chinese Government CCC Certificate,EU CE Certificate and ISO9001:2015 Quality Management System.

"Work hard with honesty" is our working attitude and basic principles.We summarized our Enterprise Spirit as "Struggle,Innovation,Harmony and Development,Honest,Gratitude,Unity and Love".WE won several National and International awards and recognition.We have agents from all over the world and we welcome new agents and partners to work together with us to contribute in the Fire Extinguisher Industry.

180L FM200 Clean Agent Fire Suppression System HFC-227 5

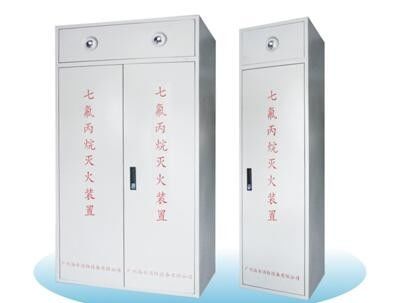

The main characteristics of the cabinet-type heptafluoropropane fire extinguishing device are high fire extinguishing efficiency, fast speed, easy installation of engineering projects, space saving, economical and practical, and no special bottle storage room is required.

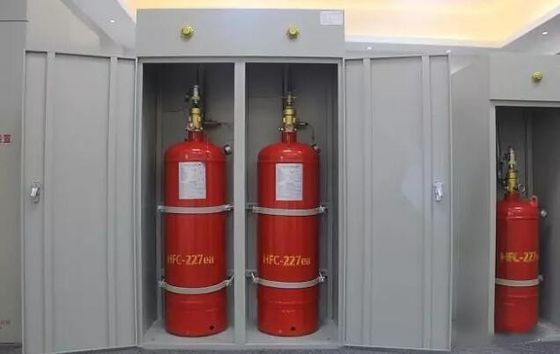

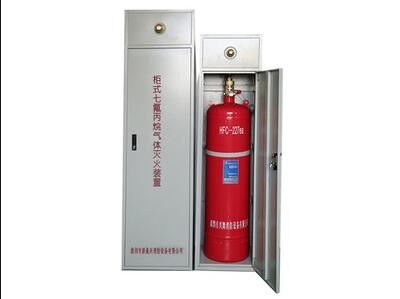

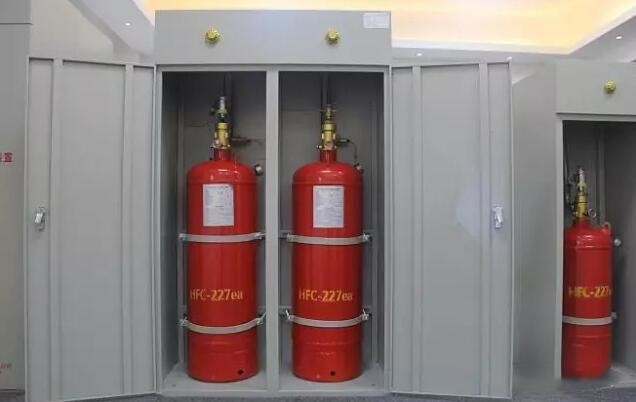

The cabinet type heptafluoropropane fire extinguishing device is composed of heptafluoropropane cylinders, container valves, electromagnetic drive devices, connecting pipes, pressure signals, nozzles and other components. The product has passed 3C compulsory certification
180L FM200 Clean Agent Fire Suppression System HFC-227 6
I believe many engineers who do fire fighting engineering are familiar with the difference between cabinet-type heptafluoropropane fire extinguishing equipment and pipe network-type heptafluoropropane fire extinguishing equipment. Today, we mainly share the advantages of cabinet-type heptafluoropropane gas fire extinguishing equipment. Now, many projects mostly use cabinet-type heptafluoropropane because of its flexible and convenient installation mode, which does not need to set up a separate gas cylinder room or set up a gas pipeline, and does not occupy too much space.
180L FM200 Clean Agent Fire Suppression System HFC-227 7

and the following three aspects must be considered: First, the toxicity of heptafluoropropane itself, when the concentration reaches more than 10%, the uncomfortable feeling will appear for a long time. Second, it is necessary to consider the possible harmfulness of the decomposition products produced by the decomposition of heptafluoropropane at high temperature. The decomposition products are mainly fluorine in the fire extinguishing agent, and hydrogen fluoride (HF) with pungent smell will be produced in the presence of hydrogen element. Even if its concentration is very small, it will cause great discomfort and harm to people. The amount of decomposition products depends on the size of the fire and the time that heptafluoropropane comes into contact with the fire or heating surface. If the concentration of extinguishing agent accumulates quickly and reaches the extinguishing concentration, the fire will be extinguished quickly and the decomposition products will be few. Third, the harm of poisonous gas which may be produced by the burning of substances in the reserve to people is unpredictable.
