Product Details:
Payment & Shipping Terms:
|
Product Name: | Fm200 Cabinet Systems | Storage Pressure: | 2.5Mpa |
---|---|---|---|
Working Temperature: | 0-50 Degree | Storage Bottle Material: | HP345 Steel Welding Gas Cylinder |
Executive Standard: | GB16670 - 2006 | Capacity: | 150 |

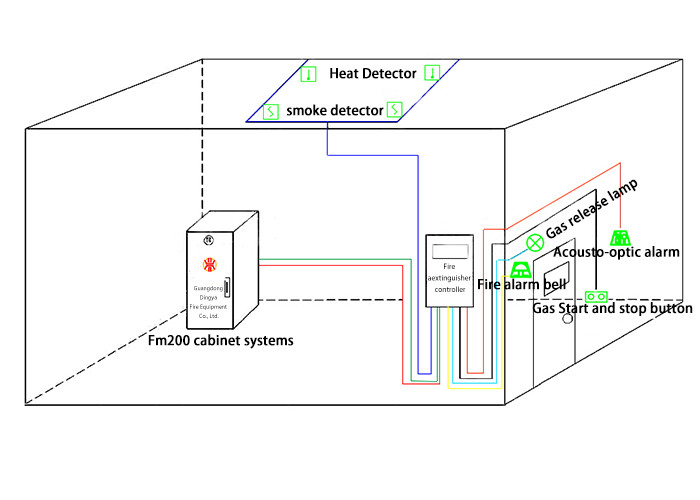

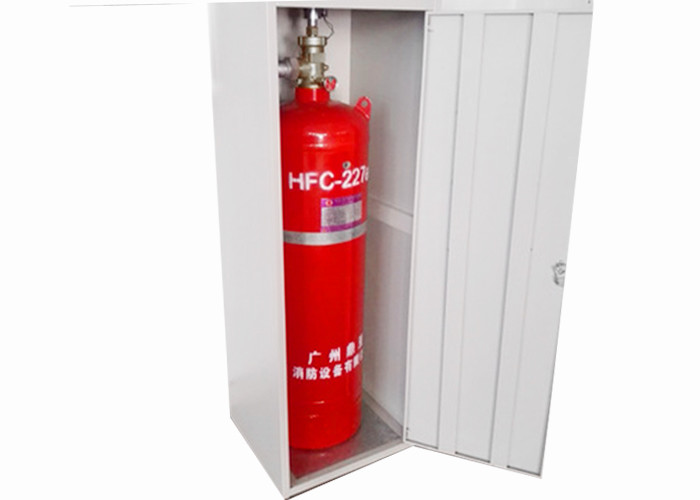

Cabinet HFC-227ea Fire Extinguisher Device
product name: Fm200 cabinet systems
3C certificate number: 2016081812000485
Executive standard: GB16670 - 2006
range of working temperature: 0 °C ~ 50 °C
Maximum working pressure : 4.2MPa
Storage pressure : 2.5 MPa
Storage bottle material: HP345 steel welding gas cylinder
Cabinet HFC-227ea Fire Extinguisher System Technical Parameter:
Model |
Storage Device Specification |
Agent Volume |
Outer Size L*W*H(mm) |
Storage Pressure |
Discharge Time |
Start Voltage/Current |
Operating Temperature Range |
GQQ40 / 2.5 |
40L |
≤40kg |
420*480*1250 |
2.5Mpa |
≤8s |
DC24V/1.2V |
0℃~50℃ |
GQQ70 / 2.5 |
70L |
≤70kg |
450*500*1450 |
2.5Mpa |
≤8s |
DC24V/1.2V |
0℃~50℃ |
GQQ100 / 2.5 |
100L |
≤100kg |
480*520*1700 |
2.5Mpa |
≤8s |
DC24V/1.2V |
0℃~50℃ |
GQQ120 / 2.5 |
120L |
≤120kg |
520*580*1700 |
2.5Mpa |
≤8s |
DC24V/1.2V |
0℃~50℃ |
GQQ150/2.5 |
150L |
≤150kg |
520*580*1830 |
2.5Mpa |
≤8s |
DC24V/1.2V |
0℃~50℃ |
Product Introduction:
HFC-227ea gas fire extinguishing device use clean gas-HEPTAFLUOROPROPANE as fire extinguishing agent,the fire extinguishing principle is to stop fire through the inerting active free radicals with high efficiency.
Product Advantage:
Colorless,odorless,clean,non - conducting,low toxicity,high efficiency,no pollution to the protected objects,especially no damage to the atmospheric ozone layer.In the first generation of halon replacements,FM200 HFC-227ea is with the best comprehensive performance.
Easy-Carry and Movable,Flexible and easy to install,beautiful appearance,design fashion,good sealing,good leak prevention,it is a kind of fire extinguishing equipment without Tube.
Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.
No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.
