Pipeline Type 40L 90L 120L FM200 Fire Suppression System

Pipeline Type 40L 90L 120L FM200 Fire Suppression System
Pipeline Type 40L 90L 120L FM200 Fire Suppression System Pipeline Type 40L 90L 120L FM200 Fire Suppression System Pipeline Type 40L 90L 120L FM200 Fire Suppression System Pipeline Type 40L 90L 120L FM200 Fire Suppression System Pipeline Type 40L 90L 120L FM200 Fire Suppression System

Large Image :  Pipeline Type 40L 90L 120L FM200 Fire Suppression System

Product Details:
Place of Origin: CHINA
Brand Name: Ding Ya
Certification: ce CCC
Model Number: QMQ4.2/100N
Payment & Shipping Terms:
Minimum Order Quantity: 2PC
Price: Negotiable
Packaging Details: Plywood case or box case
Delivery Time: About 1-10 Days After Receiving The Deposit(Based On The Quantity)
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 5100 pieces per month
Detailed Product Description
Filling Density: ≤950kg/m3 Usage: Fire Rescue System
Application: Fire Rescue System Material: Automatic FM200 Fire Suppression System
Capacity: 100,or As Customized Product Name: FM200 Gas Fire Suppression System
Storage Pressure: 4.2Mpa Operating Voltage: DC24V
High Light:

180L FM200 Fire Suppression System

,

DC24V FM200 Fire Suppression System

China FM200 Fire Suppression System 40 Liters Pipeline Type 90L / 100L / 120L / 150L / 180L

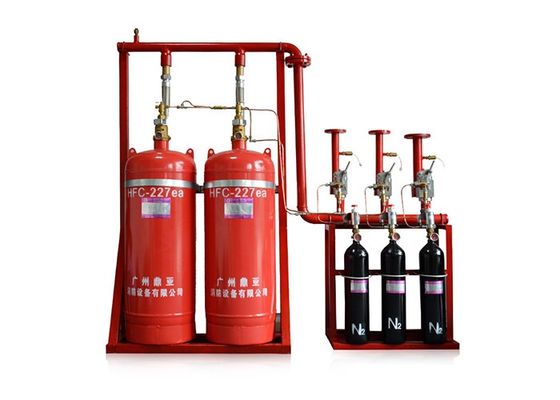

1, fire bottle group
Each fire bottle group contains fire extinguishing agent storage bottles, bottle of head valve, safety valve, manual valve, pressure gauge, seven fluorin propane fire extinguishing agent. Storage bottle size can be divided into different types according to the volume.
2, high pressure hose
High pressure hose is connected fire bottle group and extinguishing agent check valve of the device.
3, fire extinguishing agent check valve
Agent check valve installed in the high pressure hose between the header pipe and device, to prevent the reverse gas.
4, start the bottle group
Start the bottle filling nitrogen in the group, as a fire, start bottle group received instructions start gas open the selector valve, the bottle of head valve, release agent. Start the bottle group contains gas bomb, the bottle of head valve, electromagnetic starter, relief valve, manual valve, pressure gauge, start the gas.



Pipeline Type 40L 90L 120L FM200 Fire Suppression System 0

Pipeline Type 40L 90L 120L FM200 Fire Suppression System 1
5, safety relief valve
Safety relief valve is used to prevent the system from overpressure.
6, the selector valve
When there is a network of seven fluorin propane fire extinguishing system to protect multiple partitions, the selector valve used to control the fire extinguishing agent into the corresponding reserves. According to the size of the calculating pipe diameter, choose the choice of appropriate diameter valve.
7, signal pressure
Pressure signal, signal feedback agent application.
8, nozzle PLPT
Used for discharge agent.
9, high pressure pipe
High pressure pipeline used to transport agent.
10, high pressure pipe fittings
High pressure pipe fittings used to connect to high pressure pipeline.





Filling pressure 4.2 MPa Extinguishing agent release time ≤10s
Extinguishing agent filling density ≤950kg/m3 valve drive air pressure 6.0±1.0 MPa(20℃)
System Power Supply AC220V/DC24V/1A System working environment temperature -10℃~55℃
System protection limits area The largest single area 800m²;
volume : the largest single area 3600m ³
System start-up mode Automatic system startup,
electrical manual,
mechanical emergency manual.
Storage bottle volume

40L,70L,90L,120L,150L,180L

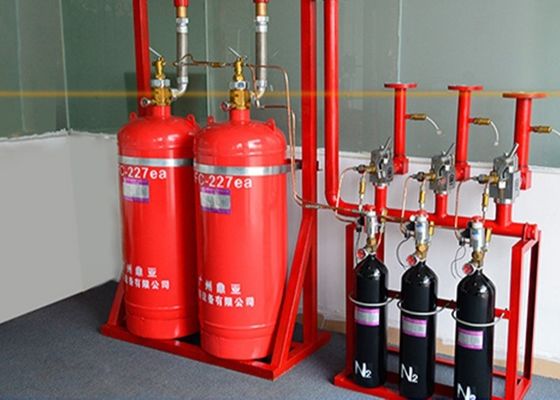

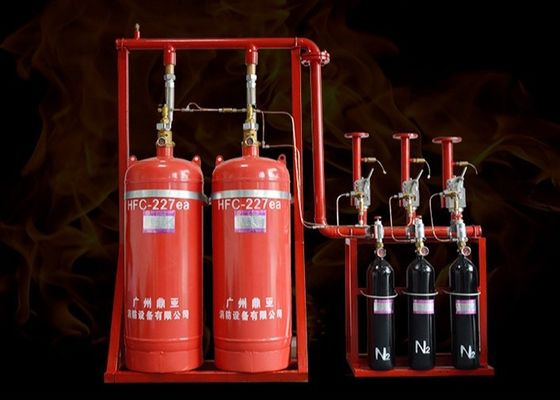

Of seven fluorin propane fire extinguishing equipment (bottles of the group of seven fluorin propane fire extinguishing system) consists of seven fluorin propane cylinders, container valve, nitrogen cylinder group, electromagnetic drive, selecting valve, check valve, header pipe, connecting pipe, pressure indicator, nozzles and other parts. Need to set up a dedicated between cylinders. ​
Have a network of seven fluorin propane fire extinguishing system of gas fire extinguishing agent storage bottles in between special cylinders at ordinary times, through the network connection, when the fire broke out, the extinguishing agent from the cylinder, to need fire protection zone, through the nozzle discharge fires. Of seven fluorin propane fire extinguishing equipment (seven fluorin propane fire extinguishing system), the container valve consists of seven fluorin propane cylinders, nitrogen drive bottle group, electromagnetic drive, selecting valve, check valve, header pipe, connecting pipe and safety relief valve, pressure indicator, nozzle, high pressure pipes, high pressure pipe fittings and other parts. Of seven fluorin propane fire extinguishing equipment (seven fluorin propane fire extinguishing system) filling of seven fluorin propane fire extinguishing agent colorless, tasteless, clean, non-conductive, low toxicity, high efficiency of extinguishing, polluting the protected objects, especially to the atmospheric ozone layer without any damage.
Pipeline Type 40L 90L 120L FM200 Fire Suppression System 2
Widely used in the protection:
1, computer room, communication room, program-controlled exchange equipment room
2, laboratory, precise instrument room, spraying workshop and chemical warehouse
3, oil depot, clean workshop, electronic workshop, etc. Various kinds of high-grade equipment room
4, archives, libraries, museums, instrument room, library, cultural center, bank vault
5, generator room, power plants, substations, power supply room and other important places
6, substation, transformer room (room), and other various types of electric room
7, TV broadcasting center, financial institutions, government agencies, the airport, buildings, wharf, garage and other important places.
Pipeline Type 40L 90L 120L FM200 Fire Suppression System 3

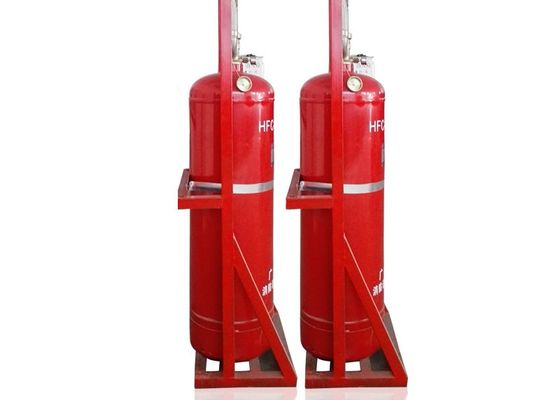

Have a network of seven fluorin propane fire extinguishing device is also called the networks of seven fluorin propane fire extinguishing system, gas extinguishing agent storage bottles was placed in a special between the cylinder inside, through the network connection, when the fire broke out, the extinguishing agent from the cylinder, to need fire protection zone, through the nozzle discharge fires. Have a network of seven fluorin propane fire extinguishing system is suitable for protection area of the room with larger area, requires a separate group there is a small room to place the cylinder, and the cylinder group after installed is not moving, pipe network pressure is greater than cabinet, long transmission distance,
Pipeline Type 40L 90L 120L FM200 Fire Suppression System 4

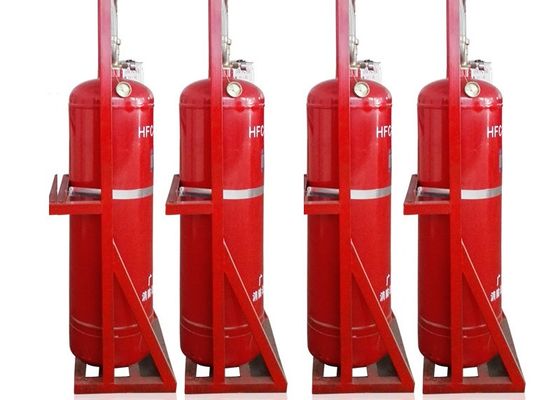

1, pipe network system through network discharge, nozzle evenly, so the uniform discharge, extinguishing effect is good, and no nozzle directly discharge pipe network are generally enclosure, discharge point is so a bit, discharge is not uniform;

2, a pipeline needs to be set separately between the cylinder and set up the network, without network don't need to, if only to protect a area, from the economic Angle has a high cost of pipe network system.

3, if more than one area, there are more than pipe network system can use the same set of system protection protection zone. Different fire protection area, specific discharge, without network need to be set separately for each protection zone cylinder and fire extinguishing agent, this time without the price of the pipe network is higher.

Pipeline Type 40L 90L 120L FM200 Fire Suppression System 5
