Product Details:
Payment & Shipping Terms:
|
Product: | FM200 Fire Alarm System | Usage: | Firefighting |
---|---|---|---|
Type: | Fire Alarm System | Function: | Fire Alarm,Fire Detection,Emergency Alert |
High Light: | Emergency Alert fire alarm and suppression system,fm200 fire safety system,fm200 fire security system |

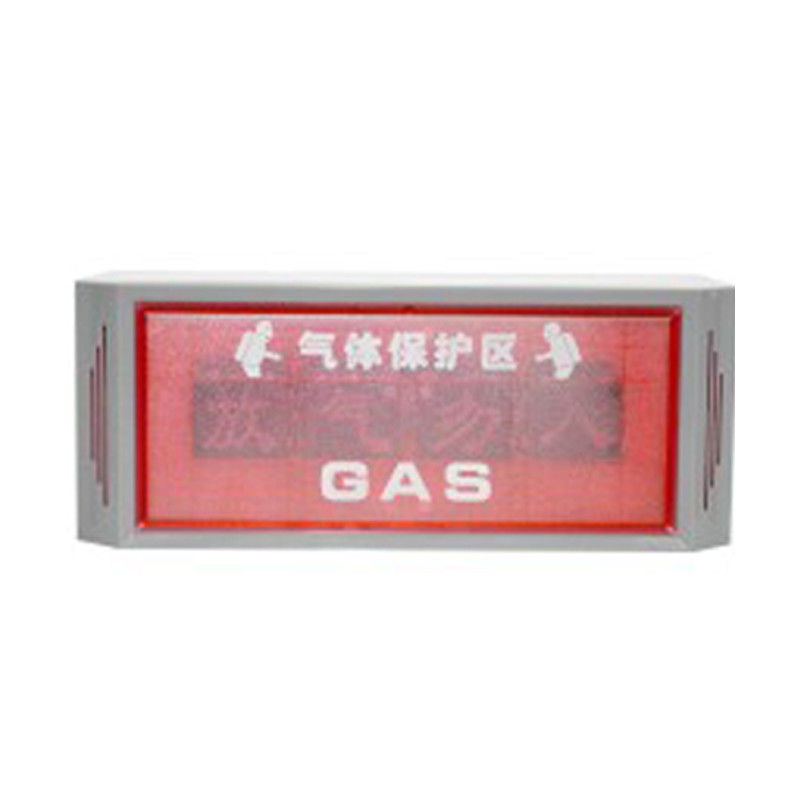

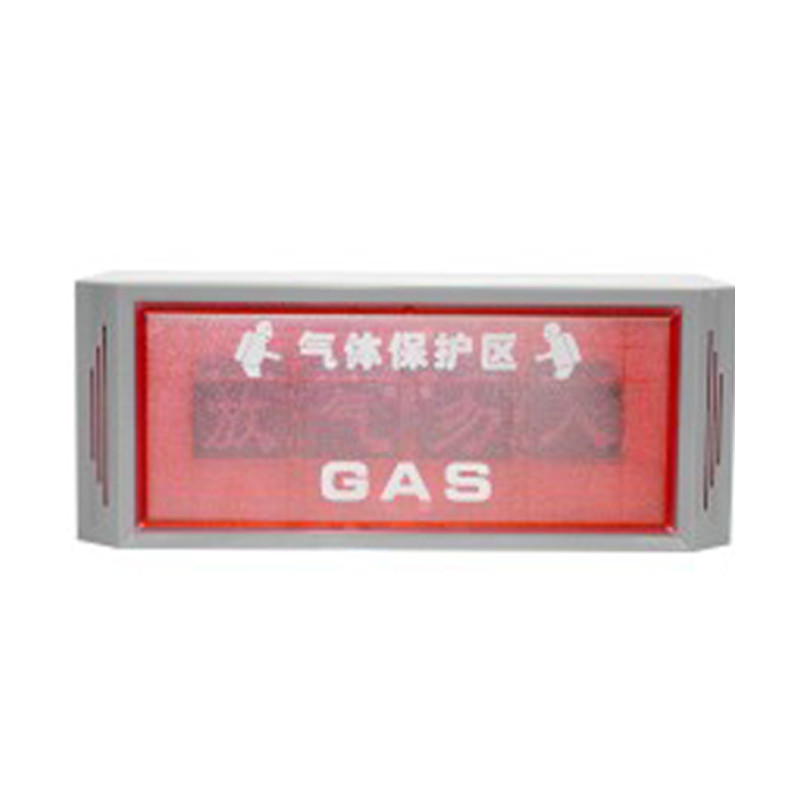

Gas Fire Extinguisher System Fire Alarm Equipment
Product Introduction:
To use ultrahigh brightness red LED as light source with markedness, long life-spin and low power consumption.
To adopt top cover and bottom cover structure design, and it’s convenient for installation, commissioning and maintenance.
To adopt MCU control flashing and audible alarm drive with high stability.
Gas fire extinguishing system and fire alarm equipment linkage debugging has been completed, when a fire occurs in protected areas,fire detector signal send out fire signal,gas fire extinguishing controller immediately send out sound and light alarm signal,the fire extinguishing controller receives two independent fire alarm signal,and issued a joint directive,then close linkage device,after 30 seconds delay,send out fire instructions to start the electromagnetic drive valve and open fire extinguishing solvent release agent,the implementation of the fire fighting.
Seamless pipe fittings and accessory for gas extinguishing system
item | Parameters | item | Parameters |
Operating Voltage | Input voltage:AC220V±20%,50Hz;Input power:≤120W Backup battery:DC24V;7.0AH(Consist of two DC12V7.0Ah in series battery),totally enclosed maintenance free battery | Operating current | Output DC24V;Continuous operation:6A;Short term(less than 3 seconds):8A |
Length of circuit | Two-wire bus ≤1000 meters | Capacity | Detector circuits: 2, connect to conventional smoke detector and heat detector separately; Quantity of detectors for each circuit ≤20 units |
Circuit alarm threshold | ≤9.1V | Contact capacity of relay | All relay: 7A/24VDC |
Output circuit current limitation | Electromagnetic drive:≤3A;Other drive:≤1A | Material | A3 steel |
Dimension | 330×450×94mm | Mounting | Wall-moun |
Operating environment | Indoors, Temperature -10℃~+55℃,relative humidity≤95%(40℃±2℃ non condensing) |
Product Introduction:
The Pipe network FM200 System need to be equipped with the corresponding propane fire extinguishing pipe connecting parts arranged in the pipeline system,such as triplet (diameter three with different diameter three),elbow, reducer,diameter straight etc.
Our company specializing in the production of heptafluoropropane fire extinguishing system, and sales heptafluoropropane fire extinguishing system pipe connections,competitive price and reliable quality.
Product Application:
This product is widely used in all kinds of building by fire extinguishing engineering.Such as: computer room,communication room,transformer distribution room,precision instrument room, generator room,power plant power station,oil depot,warehouse,library and so on.Thread matching performance is good,easy to seal,refined processing,internal and external surface electroplating anticorrosion treatment,performance parameters meet the national and international standard,the use with safety and reliability.It fully meet the work requirements of all kinds of gas fire extinguishing systems.
