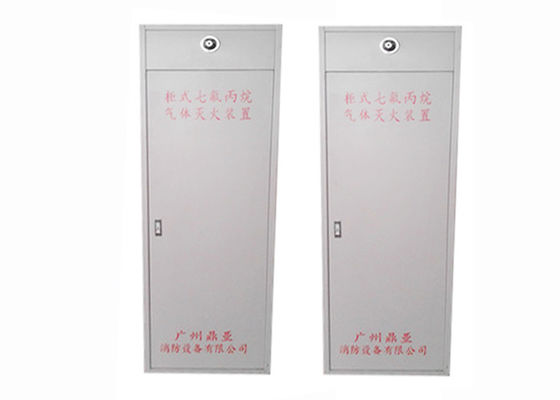

Clean Gas FM200 Fire Fighting System

Clean Gas FM200 Fire Fighting System
Clean Gas FM200 Fire Fighting System Clean Gas FM200 Fire Fighting System Clean Gas FM200 Fire Fighting System

Large Image :  Clean Gas FM200 Fire Fighting System

Product Details:
Place of Origin: guangzhou,china
Brand Name: dingya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ150-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of system
Price: negotiable
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Detailed Product Description
Product Name: Fm200 Cabinet Systems Storage Pressure: 2.5Mpa
Working Temperature: 0-50 Degree Storage Bottle Material: HP345 Steel Welding Gas Cylinder
Executive Standard: GB16670 - 2006 Capacity: 150

Cabinet HFC-227ea Fire Extinguisher Device



product name: Fm200 cabinet systems



3C certificate number: 2016081812000485

Executive standard: GB16670 - 2006

range of working temperature: 0 °C ~ 50 °C

Maximum working pressure : 4.2MPa

Storage pressure : 2.5 MPa

Storage bottle material: HP345 steel welding gas cylinder



Cabinet HFC-227ea Fire Extinguisher System Technical Parameter:



Model

Storage Device Specification

Agent Volume

Outer Size L*W*H(mm)

Storage Pressure

Discharge Time

Start Voltage/Current

Operating Temperature Range

GQQ40 / 2.5

40L

≤40kg

420*480*1250

2.5Mpa

≤8s

DC24V/1.2V

0℃~50℃

GQQ70 / 2.5

70L

≤70kg

450*500*1450

2.5Mpa

≤8s

DC24V/1.2V

0℃~50℃

GQQ100 / 2.5

100L

≤100kg

480*520*1700

2.5Mpa

≤8s

DC24V/1.2V

0℃~50℃

GQQ120 / 2.5

120L

≤120kg

520*580*1700

2.5Mpa

≤8s

DC24V/1.2V

0℃~50℃

GQQ150/2.5

150L

≤150kg

520*580*1830

2.5Mpa

≤8s

DC24V/1.2V

0℃~50℃





Product Introduction:

HFC-227ea gas fire extinguishing device use clean gas-HEPTAFLUOROPROPANE as fire extinguishing agent,the fire extinguishing principle is to stop fire through the inerting active free radicals with high efficiency.



Product Advantage:

Colorless,odorless,clean,non - conducting,low toxicity,high efficiency,no pollution to the protected objects,especially no damage to the atmospheric ozone layer.In the first generation of halon replacements,FM200 HFC-227ea is with the best comprehensive performance.

Easy-Carry and Movable,Flexible and easy to install,beautiful appearance,design fashion,good sealing,good leak prevention,it is a kind of fire extinguishing equipment without Tube.

Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.

No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.

Clean Gas FM200 Fire Fighting System 0

About Dingya

GUANDONG Ding Ya Fire Equipment Co., Ltd. (Called “Ding Ya”),is a Professional Fire Extinguisher manufacturer for more than 10 years.The company which is registered and approved by the Chinese Government is situated at No.3 Dongjing Road,Donghuagongye Village,Renhe Town,Baiyun District,Guangzhou,China.We insist on “Excellent Quality,Perfect Service and Practical price”.

All our products are made according to National and International Standard and are regularly inspected by the Quality monitoring and testing centre for Fire extinguishing ,such as Chinese Government CCC Certificate,EU CE Certificate and ISO9001:2015 Quality Management System.



"Work hard with honesty" is our working attitude and basic principles.We summarized our Enterprise Spirit as "Struggle,Innovation,Harmony and Development,Honest,Gratitude,Unity and Love".WE won several National and International awards and recognition.We have agents from all over the world and we welcome new agents and partners to work together with us to contribute in the Fire Extinguisher Industry.

Clean Gas FM200 Fire Fighting System 1Clean Gas FM200 Fire Fighting System 2
