Product Details:
Payment & Shipping Terms:
|

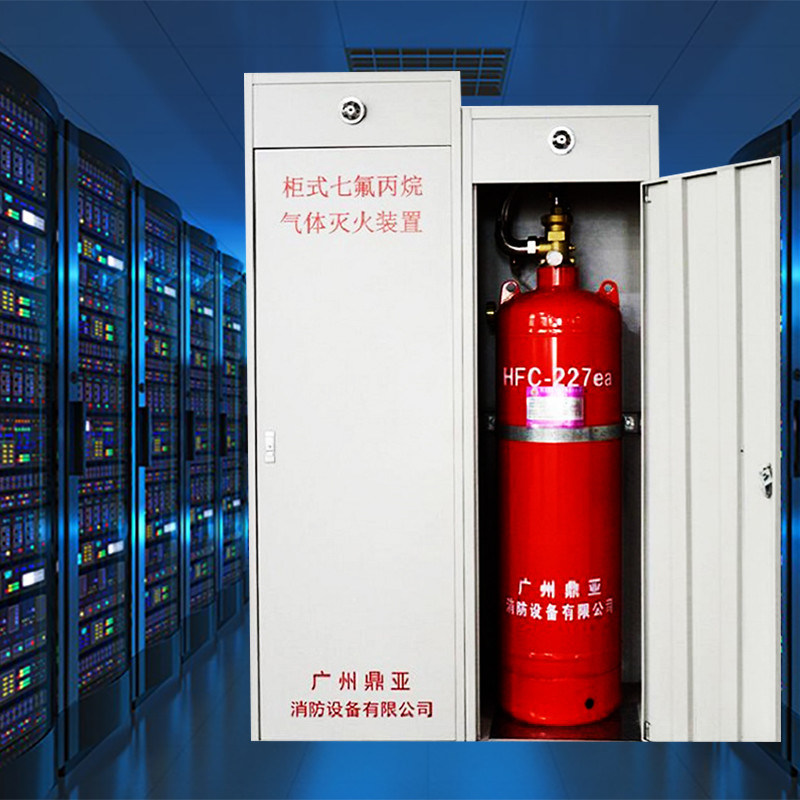

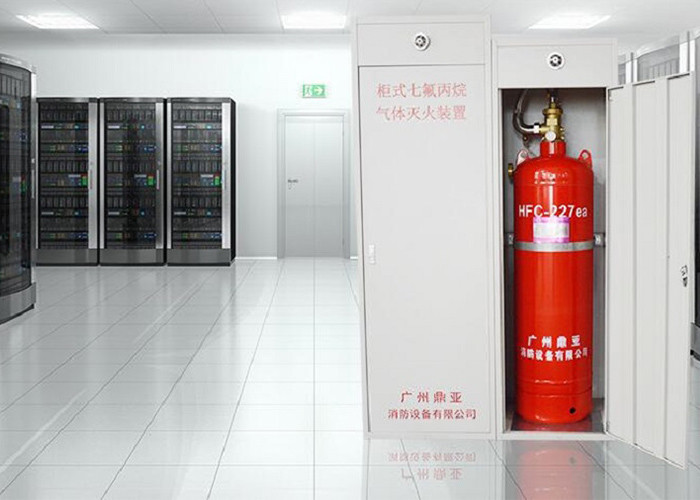

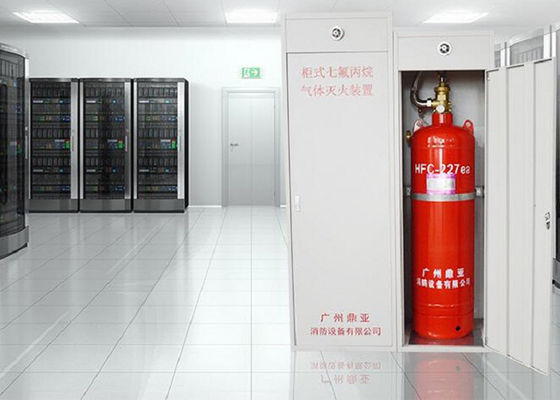

Capacity: | 100kg Fm200 | Name: | Dcp Automatic Fire Extinguisher |
---|---|---|---|
Zone Management: | Single | Pattern Of Extinguishing: | Enclosed Flooding |
Color: | Red | Label: | Silk Print Or Sticker,custom Made |
Advantage 1: | Professional Services,High Quality | Type: | 100kg Portable Automatic Fire Extinguisher |
Agent: | HFC-227ea | Usage: | Fighting ABC Fire |
High Light: | Chemical Automatic Fire Extinguisher System,fm200 Automatic Fire Extinguisher System |
1. The pipe network system is sprayed through the pipe network, and the nozzles are evenly distributed, so the spraying is uniform and the fire extinguishing effect is good. However, the non-pipe network is generally sprayed directly by the box nozzles, and the spraying is not uniform enough; 2. If there is a pipe network, it is necessary to set up a separate cylinder room and a pipe network, but there is no pipe network. If only one area is protected, the cost of the pipe network system is high from an economic point of view. 3. If there are pipe network systems in multiple areas,
Specification | Technical parameter |
Working pressure | 4.2Mpa |
Type | Fm200 direct type |
Max working pressure | 5.2Mpa |
model | QMQ4.2/100N |
Working temperature | 0-50℃ |
Density of unit volume | ≤950kg/m³ |
Max length of detecting tube | 50m |
Quantity of agent | 100kg |
We can supply different kinds of Automatic Fire Extinguisher below:
FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;
If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.
We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.
Thank you very much for your best cooperation and support!
The door
Feature:
1.Fire Equipment is our TOP products.We are most Professional Fire Extinguisher Manafuturer,located in Guangzhou,China.
We can supply different kinds of Automatic Fire Extinguisher below:
FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;
If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.
We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.
Thank you very much for your best cooperation and support!
products
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Feature:
1.Fire Equipment Vaporized completely in the atmosphere without residue and pollution.
2.Colorless,Odorless,non-conductive,insulation,lowest toxicity
3.Beautiful apperance,fashion design and reliable performance.
4.Application:Computer room,Switching Room,Precision Instrument Room,Hospital,TV Station,Railway Station,Museum,Institution,Laboratory,Library,Data Room,Power Factory,Archives etc.

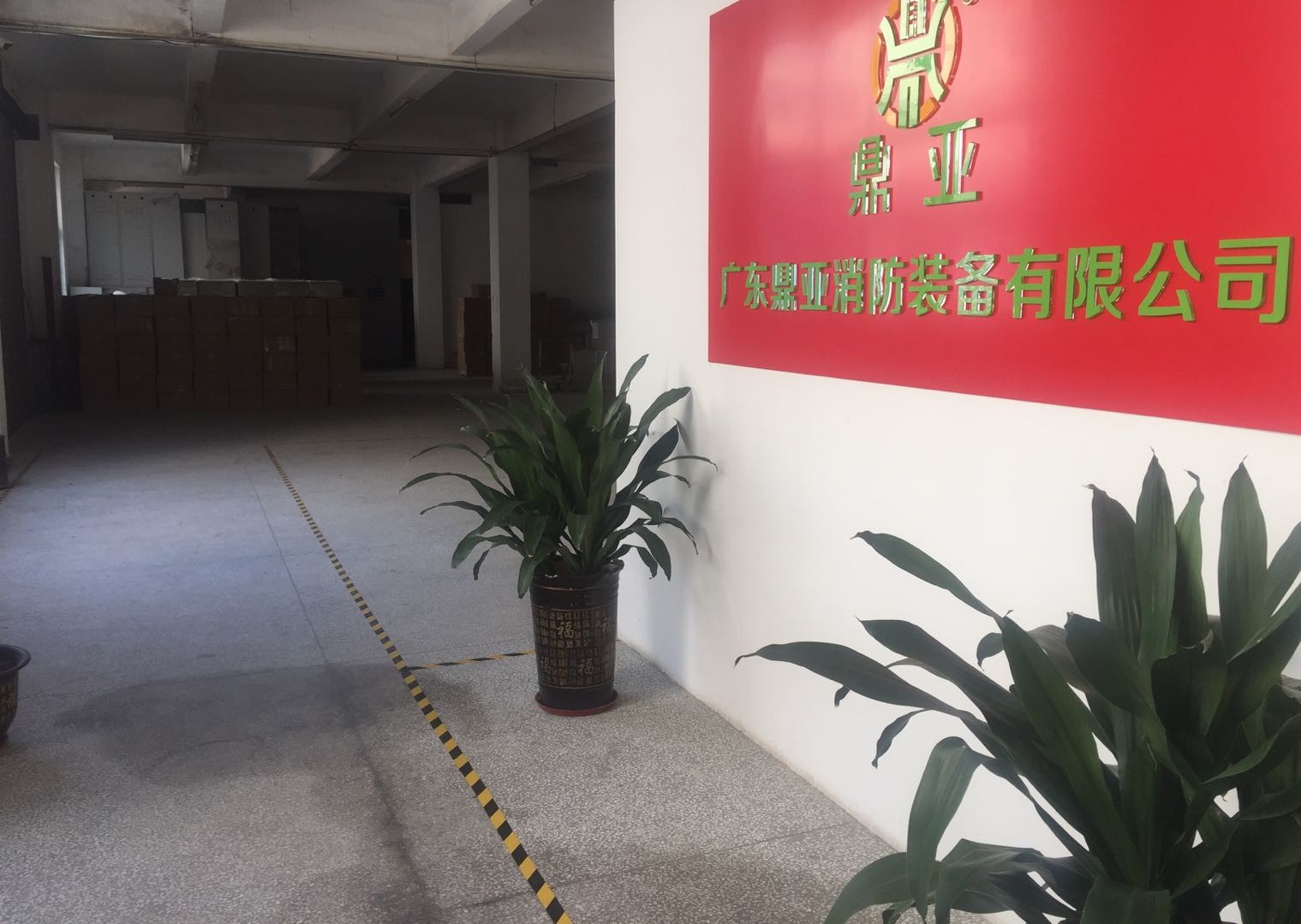

Enterprise production base
the same system can be used to protect multiple protection areas. Fire occurs in different protection areas, and targeted spraying occurs. However, steel cylinders and fire extinguishing agents need to be set separately in each protection area without pipe network. At this time, the price without pipe network is relatively high. 4. cylinders with pipe network system are between cylinders. Because of the long distance, the pressure is required to be high, generally 4.2MPa. Have a plenty of 5.6MPa. 5, no pipe network system cylinders in the protection zone. Because it is in the protection zone, the pressure cannot be too high, so 2.5MPa is generally selected.
