Is the installation of heptafluoropropane gas fire extinguishing system also dangerous? What should be paid attention to in the installation process of heptafluoropropane gas fire extinguishing system? Let's talk briefly. The heptafluoropropane gas fire extinguishing system can be divided into the heptafluoropropane gas fire extinguishing system with pipe network and the heptafluoropropane gas fire extinguishing system without pipe network. The field installation of heptafluoropropane gas fire extinguishing system without pipe network is relatively simple, and the installation of the gas automatic fire extinguishing system can be completed only by installing the cabinet-type gas fire extinguishing system at the designated position and then connecting the driving line with the automatic fire alarm controller.
| Specification | Technical parameter |
| Working pressure | 4.2Mpa |
| Type | Fm200 direct type |
| Max working pressure | 5.2Mpa |
| model | QMQ4.2/100N |
| Working temperature | 0-50℃ |
| Density of unit volume | ≤950kg/m³ |
| Max length of detecting tube | 50m |
| Quantity of agent | 100kg |
We can supply different kinds of Automatic Fire Extinguisher below:

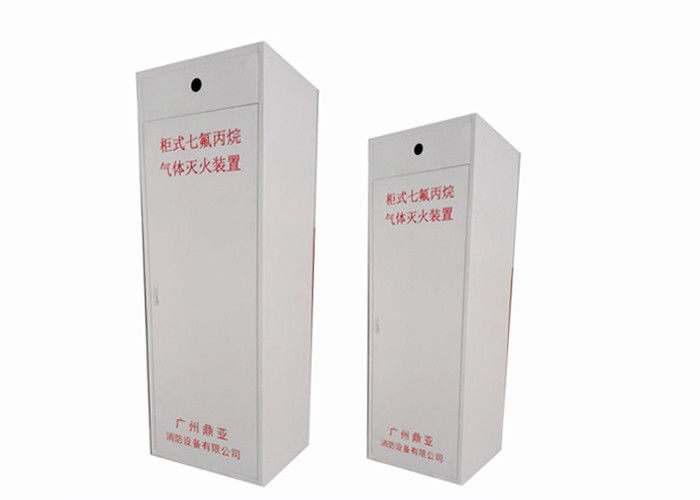

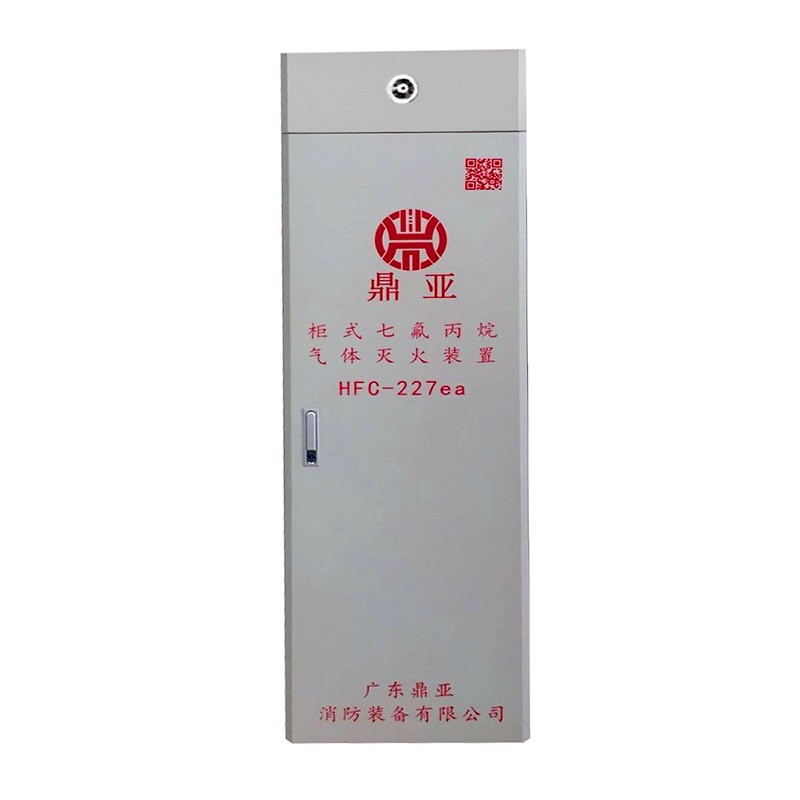

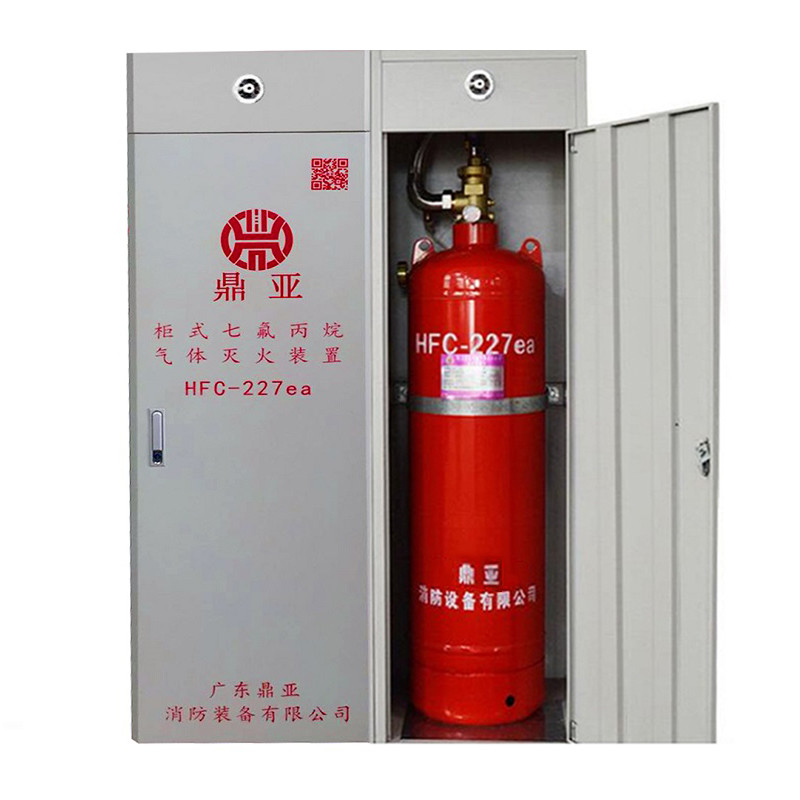

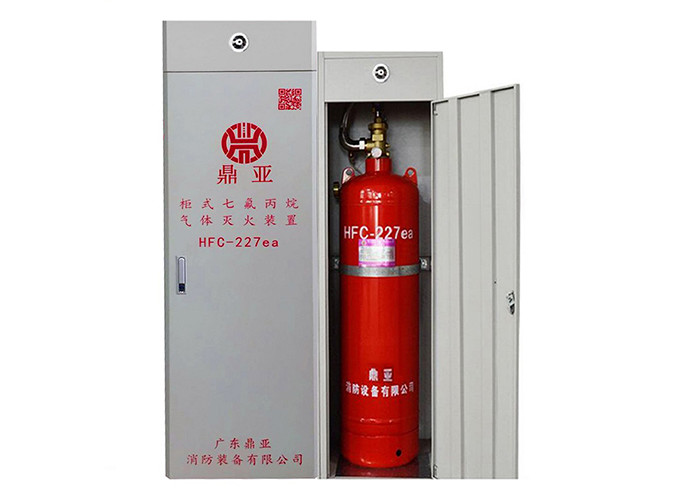

FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;
If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.
We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.
Thank you very much for your best cooperation and support!
The door
Feature:
1.Fire Equipment is our TOP products.We are most Professional Fire Extinguisher Manafuturer,located in Guangzhou,China.
We can supply different kinds of Automatic Fire Extinguisher below:
FM200 Heptafluoropropane(HFC-227ea) Fire Extinguisher: FM200 Automatical Cabinet Fire Extinguisher System;
If you have questions or requirements,donnot hesitate to let us know,we will supply best service to you in the first time,Including best Program and design for you to save your cost and make it most effective.
We hope our Ding Ya Brand Fire Extinguisher System will be your Important choise.
Thank you very much for your best cooperation and support!
products
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Feature:
1.Fire Equipment Vaporized completely in the atmosphere without residue and pollution.
2.Colorless,Odorless,non-conductive,insulation,lowest toxicity
3.Beautiful apperance,fashion design and reliable performance.
4.Application:Computer room,Switching Room,Precision Instrument Room,Hospital,TV Station,Railway Station,Museum,Institution,Laboratory,Library,Data Room,Power Factory,Archives etc.
Enterprise production base
On-site installation of heptafluoropropane gas fire extinguishing system with pipe network is higher than that of gas fire extinguishing system without pipe network. First of all, the gas extinguishing bottle group should be located in the special bottle storage room. The bottle storage room should be close to the protection area, and should comply with the relevant regulations on building fire resistance rating not lower than Grade II and the regulations on pressure vessel storage, and should have an outlet directly leading to outdoor or evacuation walkway. The ambient temperature of the bottle storage room and the protection area with prefabricated fire extinguishing system should be -10℃~50℃.
