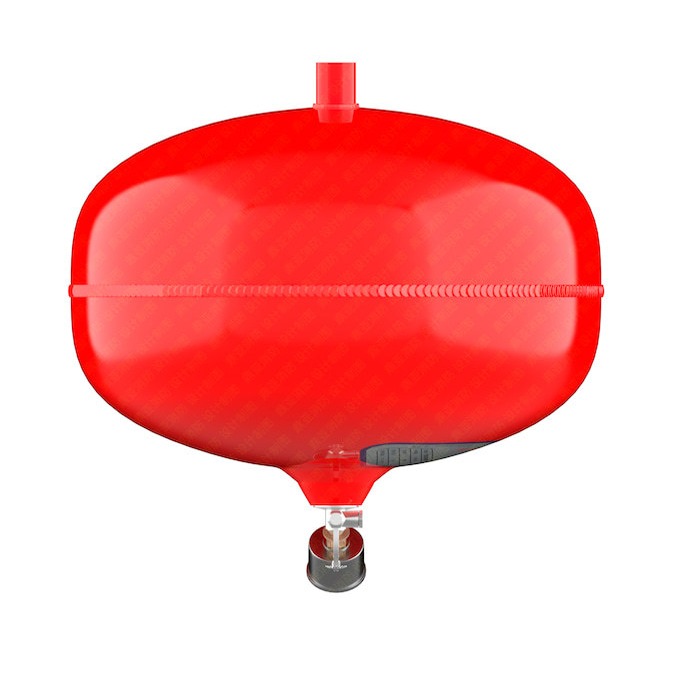

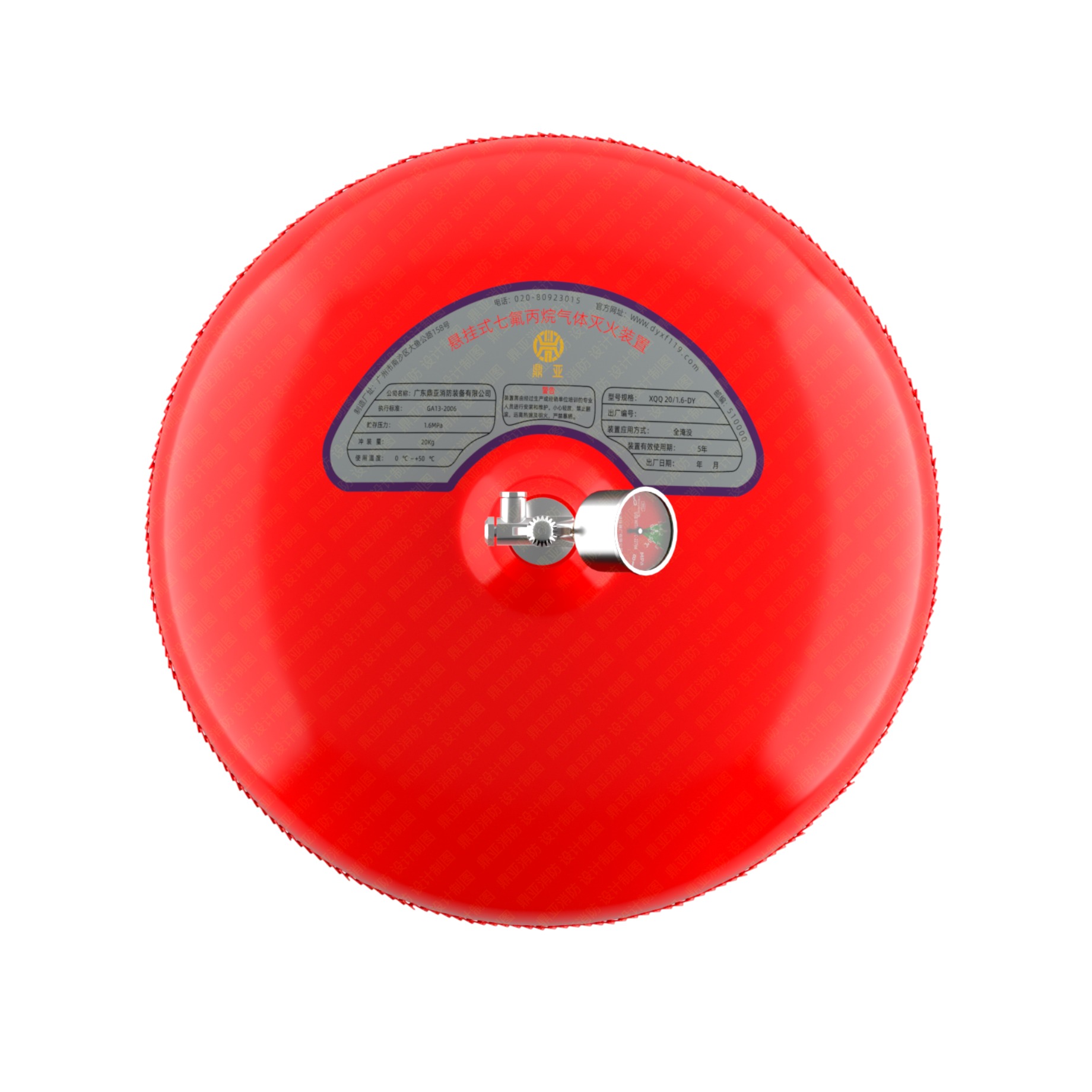

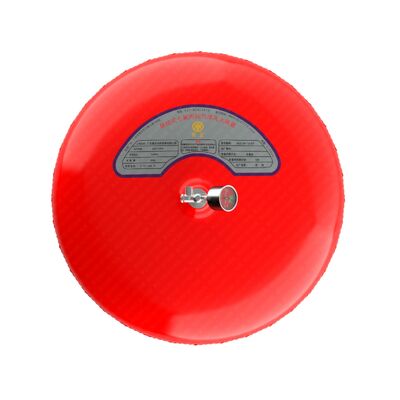

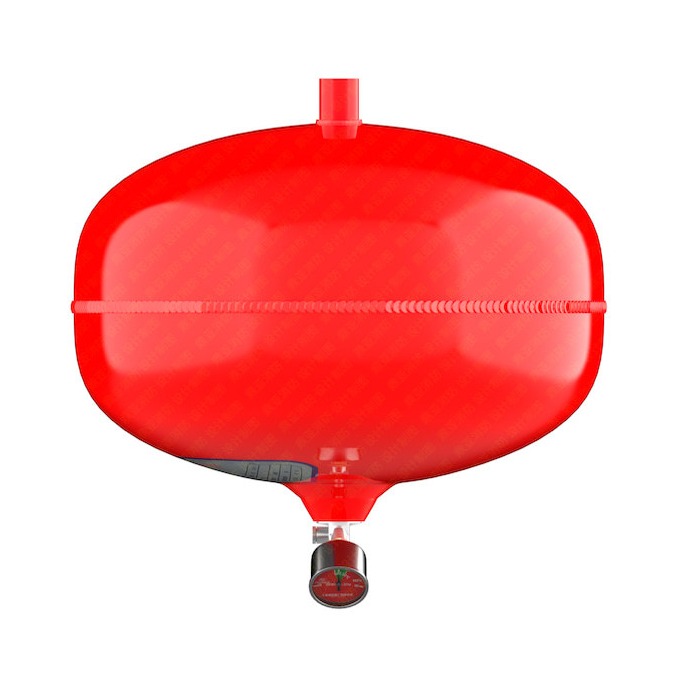

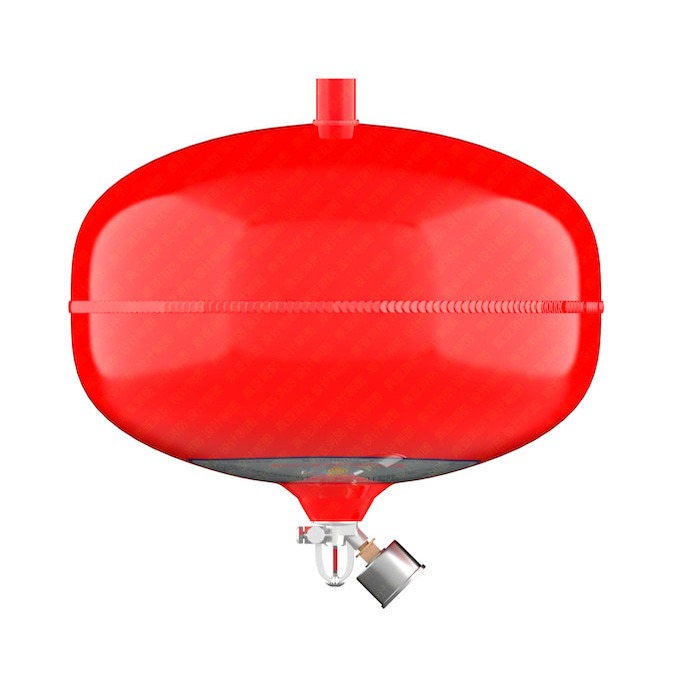

XQQW20/1.6-DY Fixed temperature suspended heptafluoropropane fire extinguishing device is a self-starting fire extinguishing device, specially designed for fire protection in small spaces, especially suitable for mobile monitoring room, main control room, computer room, bank vault, archives and other small places requiring precise fire control. Hefluoropropane (HFC-227ea) fire extinguishing agent is used to ensure environmental protection, safety and no residue. When a fire occurs, the device is triggered by a fixed temperature to achieve efficient automatic fire extinguishing protection.
XQQW20/1.6-DY:Applicable to small protection areas, the amount of fire extinguishing agent filling is 20 kg.
· Linkage control, intelligent response
The system is linked with fire equipment, and automatically responds through electromagnetic start-up (DC24V/1. 5A) when a fire occurs, and can be operated manually to achieve precise fire extinguishing and protect the safety of key areas.
· Efficient fire extinguishing, rapid suppression of fire source
The series adopts fixed temperature start, and the glass bubble nozzle automatically triggers fire extinguishing when the temperature reaches 68 °C. It does not need to be linked with the fire alarm system. The design is simple and suitable for small spaces with independent protection.
· Efficient fire extinguishing, quick control of fire source
With its excellent heat absorption and chemical inhibition, heptafluoropropane fire extinguishing agent can be sprayed within ≤ 10 seconds, quickly extinguishing the fire source, ensuring that the fire is controlled in the shortest possible time, and equipment and property losses.
· Compact structure, easy installation
The device has a compact structure and can be directly suspended in a load-bearing position or installed on a wall, which greatly saves space resources and is a fire extinguishing equipment with limited space.
· Wide applicability, protection against various fire types
It is suitable for Class A (solid), Class B (liquid) and Class C (gas) fires, and is widely used in areas with fire risk, such as precision instrument rooms, control rooms, etc.
· Computer room, communication room, program-controlled exchange room.
· Laboratory, precision instrument room, spraying workshop, chemical warehouse.
· Oil depot, clean workshop, electronic workshop, and other high-grade equipment room.
· Archives, libraries, museums, bill rooms, reference rooms, cultural centers, bank vaults.
· Generator room, power plant, distribution room, power room and other important places.
· Substation, transformer room (room) and other electrical rooms.
· Television broadcasting centers, financial institutions, government agencies, airports, buildings, wharfs, automobiles and other important places.
