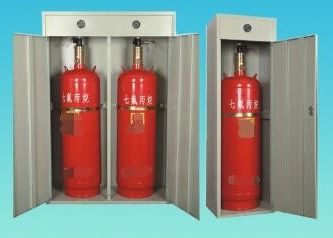

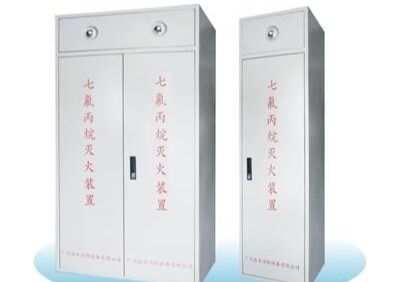

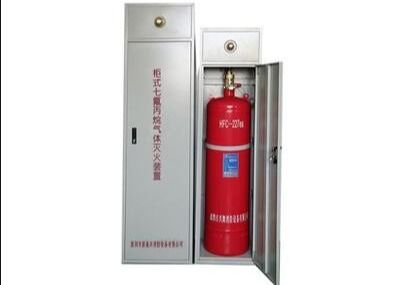

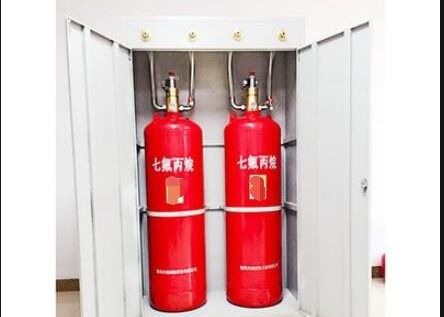

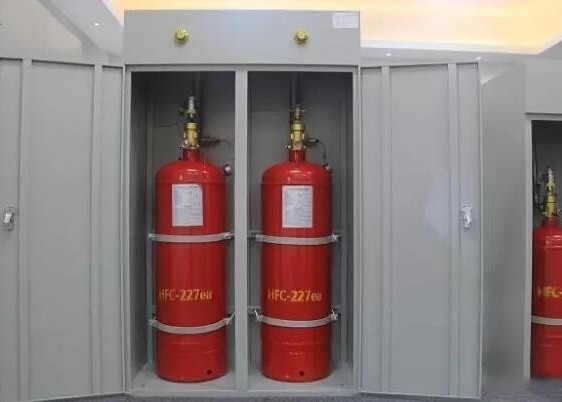

Prefabricated GQQ100 100L FM200 Fire Fighting System

Prefabricated GQQ100 100L FM200 Fire Fighting System
Prefabricated GQQ100 100L FM200 Fire Fighting System Prefabricated GQQ100 100L FM200 Fire Fighting System Prefabricated GQQ100 100L FM200 Fire Fighting System Prefabricated GQQ100 100L FM200 Fire Fighting System Prefabricated GQQ100 100L FM200 Fire Fighting System

Large Image :  Prefabricated GQQ100 100L FM200 Fire Fighting System

Product Details:
Place of Origin: guangzhou,china
Brand Name: Ding Ya
Certification: CE,CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ100-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 2 set of system
Price: negotiable
Packaging Details: Plywood case or box case
Delivery Time: 10-14 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 503 sets per week
Detailed Product Description
Operating Voltage: DC24V,24V DC Storage Pressure: 2.5Mpa///
Working Temperature: 0-51 Degree Storage Bottle Material: HP345 Steel Welding Gas Cylinder
Executive Standard: GB16670 - 2006 Capacity: 150
Color: Red Company Type: Manufacturer Over 10-years
High Light:

100L FM200 Fire Fighting System

,

GQQ 100 FM200 Fire Fighting System

100L fm 200 fire suppression system GQQ100 File storage room Clean gas extinguishing
Before cabinet heptafluoropropane was widely used, when we talked about gas fire extinguishing systems, we all knew that the common gas fire extinguishing systems were hfc-227ea/FM200 heptafluoropropane gas fire extinguishing system, ig541 system, ig55 system and carbon dioxide system. No matter which fire extinguishing agent was used, all the fire extinguishing systems had one thing in common: almost all of them had to be installed with pipeline network.
Prefabricated GQQ100 100L FM200 Fire Fighting System 0


ModelStorage Device SpecificationAgent VolumeOuter Size L*W*H(mm)Storage PressureDischarge TimeStart Voltage/CurrentOperating Temperature Range
GQQ40 / 2.540L≤40kg420*480*12502.5Mpa≤8sDC24V/1.2V0℃~+50℃
GQQ70 / 2.570L≤70kg450*500*14502.5Mpa≤8sDC24V/1.2V0℃~+50℃
GQQ90 / 2.590L≤90kg480*520*17002.5Mpa≤8sDC24V/1.2V0℃~+50℃
GQQ100 / 2.5100L≤100kg480*520*17002.5Mpa≤8sDC24V/1.2V0℃~+50℃
GQQ120 / 2.5120L≤120kg520*580*17002.5Mpa≤8sDC24V/1.2V0℃~+50℃
GQQ150/2.5150L≤150kg520*580*18302.5Mpa≤8sDC24V/1.2V0℃~+50℃
GQQ180/2.5180L≤180kg520*580*18302.5Mpa≤8sDC24V/1.2V0℃~+50℃


 Prefabricated GQQ100 100L FM200 Fire Fighting System 1

Relatively speaking, network type of gas fire extinguishing system defect is installed is very complex, and need a lot of pipes to install the equipment, in addition, it takes a lot of space and no save space. (of course, you can let ding fire to complete the installation and debugging, the tripod with two handles the fire across the country have the construction team, can complete the entire fire extinguishing system for material, we provide one-stop service of gas fire extinguishing system, cabinet or pipe network system, design and production installation maintenance one-stop service)


 Prefabricated GQQ100 100L FM200 Fire Fighting System 2
Product Advantage:

Considering the above factors, in China, our engineers have developed a new type of fm200 / HFC - 227 ea fire extinguishing system, we call it "cabinet fm200 / HFC - 227 ea fire extinguishing device", in other words, the "no tubular fm200 / HFC - 227 ea fire extinguishing device", what is its action? The meaning is: will the cylinder containing HFC - 227 ea fire extinguishing agent into the special design of the cabinet, and set the cabinet with fire nozzle, and the equipment is installed directly in the protection zone of any position.

Prefabricated GQQ100 100L FM200 Fire Fighting System 3

Never destroy structure of protect area,agent use fully,when there is a fire,it injects gas to the protected area directly,therefore,very effective and fast.

No need to do a separate storage room,the device is in protected area,it saves your space, economical and practical.

Prefabricated GQQ100 100L FM200 Fire Fighting System 4
About Dingya
GUANDONG Ding Ya Fire Equipment Co., Ltd. (Called “Ding Ya”),is a Professional Fire Extinguisher manufacturer for more than 10 years.The company which is registered and approved by the Chinese Government is situated at No.3 Dongjing Road,Donghuagongye Village,Renhe Town,Baiyun District,Guangzhou,China.We insist on “Excellent Quality,Perfect Service and Practical price”.
All our products are made according to National and International Standard and are regularly inspected by the Quality monitoring and testing centre for Fire extinguishing ,such as Chinese Government CCC Certificate,EU CE Certificate and ISO9001:2015 Quality Management System.

"Work hard with honesty" is our working attitude and basic principles.We summarized our Enterprise Spirit as "Struggle,Innovation,Harmony and Development,Honest,Gratitude,Unity and Love".WE won several National and International awards and recognition.We have agents from all over the world and we welcome new agents and partners to work together with us to contribute in the Fire Extinguisher Industry.

Prefabricated GQQ100 100L FM200 Fire Fighting System 5

The main characteristics of the cabinet-type heptafluoropropane fire extinguishing device are high fire extinguishing efficiency, fast speed, easy installation of engineering projects, space saving, economical and practical, and no special bottle storage room is required.
The cabinet type heptafluoropropane fire extinguishing device is composed of heptafluoropropane cylinders, container valves, electromagnetic drive devices, connecting pipes, pressure signals, nozzles and other components. The product has passed 3C compulsory certification
Prefabricated GQQ100 100L FM200 Fire Fighting System 6
I believe many engineers who do fire fighting engineering are familiar with the difference between cabinet-type heptafluoropropane fire extinguishing equipment and pipe network-type heptafluoropropane fire extinguishing equipment. Today, we mainly share the advantages of cabinet-type heptafluoropropane gas fire extinguishing equipment. Now, many projects mostly use cabinet-type heptafluoropropane because of its flexible and convenient installation mode, which does not need to set up a separate gas cylinder room or set up a gas pipeline, and does not occupy too much space.
Prefabricated GQQ100 100L FM200 Fire Fighting System 7

Cabinet shell is made of high quality steel and coated with silver, so to provide protection for HFC - 227 ea cylinders, it has the following advantages, but not limited to the following:
First of all, appearance beautiful, cabinet fm200 / HFC - 227 ea of seven fluorin propane fire extinguishing device that looks good, just like people wearing beautiful clothes.
Secondly, in order to achieve safety, HFC - 227 ea cylinders we know HFC - 227 ea is a colorless, odorless and clean gas chemicals, HFC - 227 ea and nitrogen gas in the cylinder filling, put gas bomb in and firmly fixed on the inner wall of the internal cabinet, so even during transport or system debugging/installation, also safer to operate.
