Product Details:
Payment & Shipping Terms:
|
Company Type: | Manufacturer Over 20-years | Color: | Red...111 |
---|---|---|---|
Operating Voltage: | DC24V,24V DC | Discharge Time: | ≤10s |
Capacity: | 120L | Storage Pressure: | 2.5Mpa/////F |
System Type: | Network Type | Power: | AC220V/DC24V/1A |
Filling Pressure: | 2.5Mpa | ||
High Light: | 150L FM200 Fire Fighting System,2.5Mpa FM200 Fire Fighting System,Hfc-227ea Fire Suppression System |

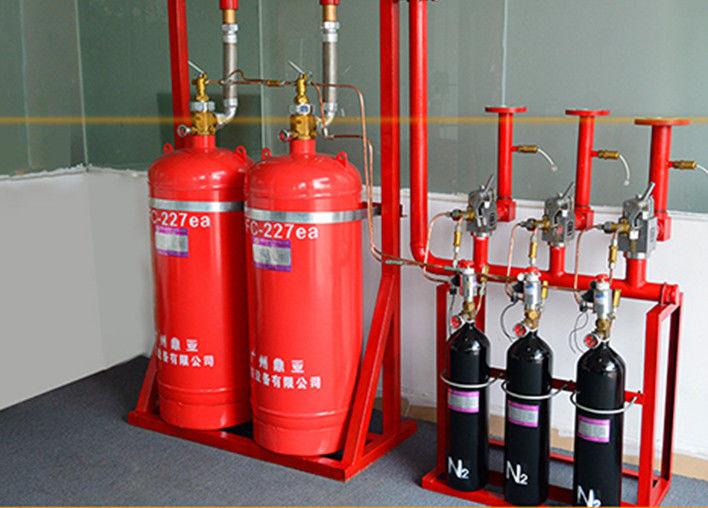

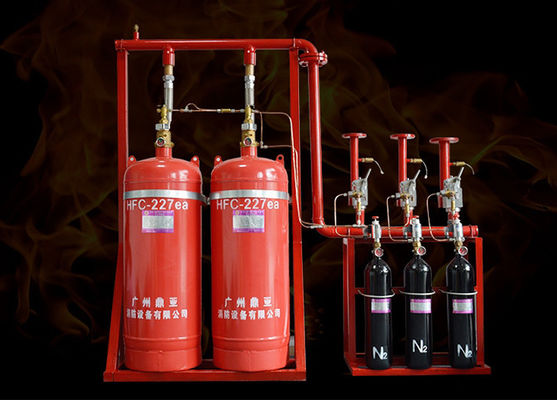

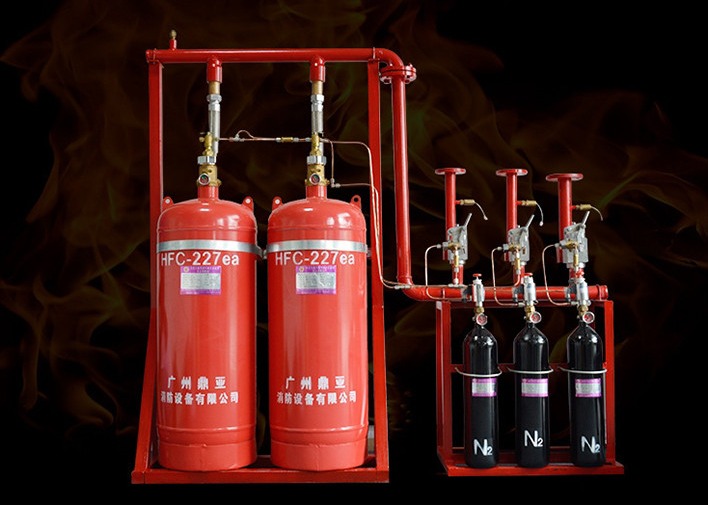

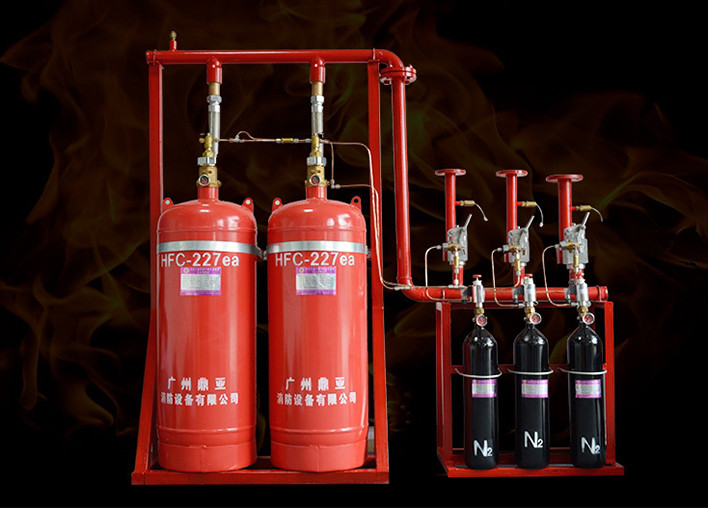

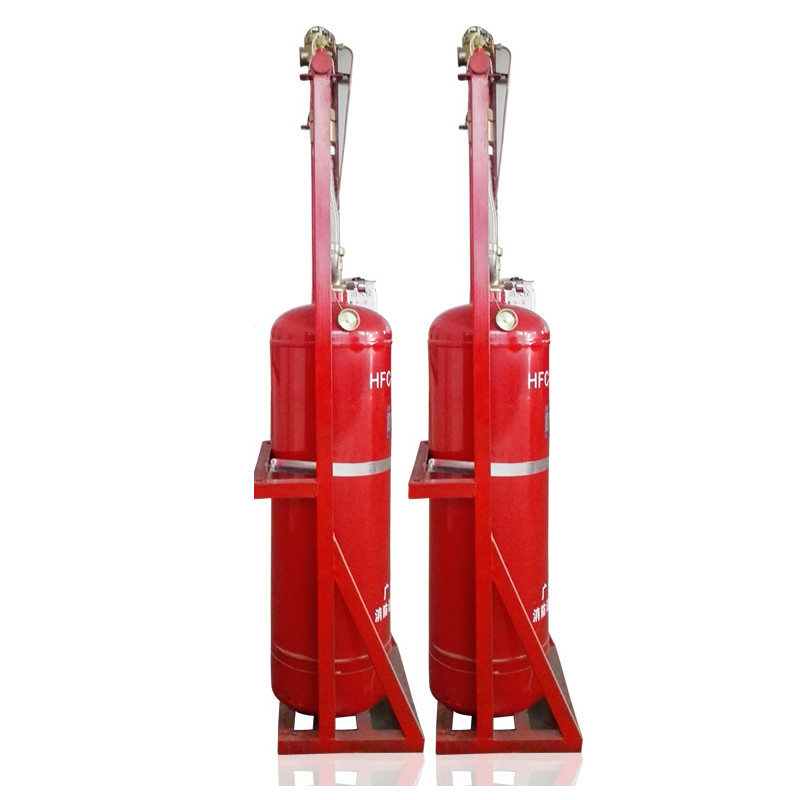

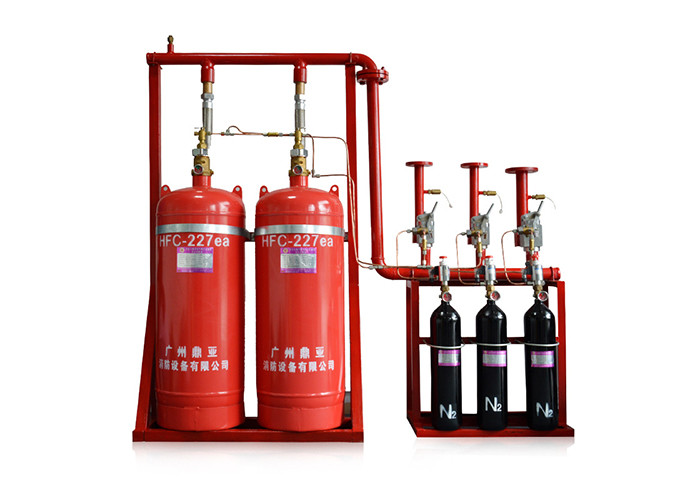

150L FM-200 Fire Suppression Systems ,Fm 200 Fire Suppression System,Fire Safety Solutions,Hfc-227ea
Heptafluoropropane is also the fire extinguishing agent of gas fire extinguishing system, and it is a clean gas fire extinguishing agent meeting the requirements of NFPA-2001 specification formulated by national fire protection association (NFPA). It is characterized by "non-conductive and volatile gaseous fire extinguishing agent
Model | Storage Device Specification | Agent Volume | Outer Size L*W*H(mm) | Storage Pressure | Discharge Time | Start Voltage/Current | Operating Temperature Range |
GQQ40 / 2.5 | 40L | ≤40kg | 420*480*1250 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ70 / 2.5 | 70L | ≤70kg | 450*500*1450 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ90 / 2.5 | 90L | ≤90kg | 480*520*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ100 / 2.5 | 100L | ≤100kg | 480*520*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ120 / 2.5 | 120L | ≤120kg | 520*580*1700 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ150/2.5 | 150L | ≤150kg | 520*580*1830 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
GQQ180/2.5 | 180L | ≤180kg | 520*580*1830 | 2.5Mpa | ≤8s | DC24V/1.2V | 0℃~+50℃ |
Relatively speaking, network type of gas fire extinguishing system defect is installed is very complex, and need a lot of pipes to install the equipment, in addition, it takes a lot of space and no save space. (of course, you can let ding fire to complete the installation and debugging, the tripod with two handles the fire across the country have the construction team, can complete the entire fire extinguishing system for material, we provide one-stop service of gas fire extinguishing system, cabinet or pipe network system, design and production installation maintenance one-stop service)
Product Advantage:
About Dingya
GUANDONG Ding Ya Fire Equipment Co., Ltd. (Called “Ding Ya”),is a Professional Fire Extinguisher manufacturer for more than 10 years.The company which is registered and approved by the Chinese Government is situated at No.3 Dongjing Road,Donghuagongye Village,Renhe Town,Baiyun District,Guangzhou,China.We insist on “Excellent Quality,Perfect Service and Practical price”.
All our products are made according to National and International Standard and are regularly inspected by the Quality monitoring and testing centre for Fire extinguishing ,such as Chinese Government CCC Certificate,EU CE Certificate and ISO9001:2015 Quality Management System.
"Work hard with honesty" is our working attitude and basic principles.We summarized our Enterprise Spirit as "Struggle,Innovation,Harmony and Development,Honest,Gratitude,Unity and Love".WE won several National and International awards and recognition.We have agents from all over the world and we welcome new agents and partners to work together with us to contribute in the Fire Extinguisher Industry.
The main characteristics of the cabinet-type heptafluoropropane fire extinguishing device are high fire extinguishing efficiency, fast speed, easy installation of engineering projects, space saving, economical and practical, and no special bottle storage room is required.
The cabinet type heptafluoropropane fire extinguishing device is composed of heptafluoropropane cylinders, container valves, electromagnetic drive devices, connecting pipes, pressure signals, nozzles and other components. The product has passed 3C compulsory certification
I believe many engineers who do fire fighting engineering are familiar with the difference between cabinet-type heptafluoropropane fire extinguishing equipment and pipe network-type heptafluoropropane fire extinguishing equipment. Today, we mainly share the advantages of cabinet-type heptafluoropropane gas fire extinguishing equipment. Now, many projects mostly use cabinet-type heptafluoropropane because of its flexible and convenient installation mode, which does not need to set up a separate gas cylinder room or set up a gas pipeline, and does not occupy too much space.
, leaving no residue during use". At the same time, the clean fire extinguishing agent of heptafluoropropane is harmless to the environment, has short retention period in nature, high fire extinguishing efficiency, and is non-toxic and harmful at a certain design concentration, so it is suitable for protected areas with staff resident. Tested by the National Testing Center in December 1996, it and carbon dioxide are the main products to replace haloalkane.
