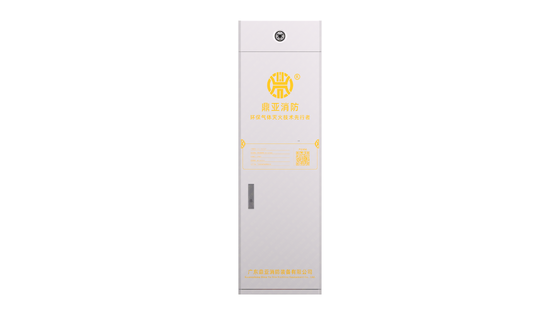

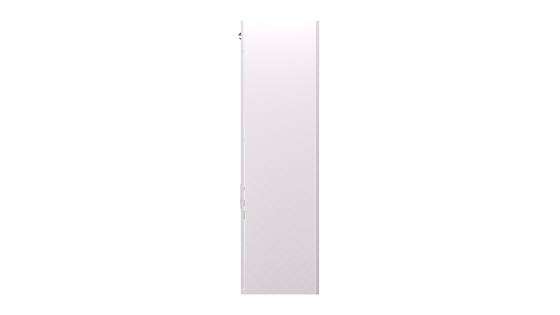

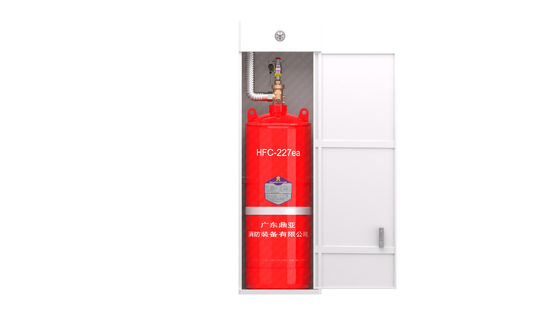

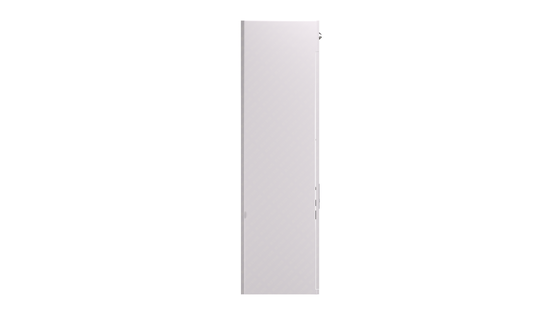

Cabinet Type FM200 Gas Fire Extinguishing System GQQ120L/2.5

GQQ series cabinet fire extinguishing device is an independent gas fire extinguishing system designed for the needs of diversified protection areas. It uses environmentally friendly and safe heptafluoropropane (HFC-227ea) as a fire extinguishing agent, which is suitable for fire protection needs in small and medium-sized protection areas. This series of products does not require an additional pipe network system, and the device is placed directly in the protection area. It has a compact design and a small footprint. It is especially suitable for important areas such as computer rooms, archives, and power distribution rooms, providing users with efficient and fast fire extinguishing solutions.

Product model and specification:

GQQ120L/2. 5-DY: suitable for medium and large protective areas with a filling capacity of 120L of fire extinguishing agent;

This series of cabinet-type fire extinguishing devices have high-efficiency fire extinguishing capabilities, and can quickly release fire extinguishing agents in the protection area to ensure that the fire is under control at the initial stage.

Product Features

•Environmental protection and pollution-free

The heptafluoropropane fire extinguishing agent used in GQQ series fire extinguishing devices is harmless (ODP = 0), and it gasifies quickly after fire extinguishing, leaving no solid or liquid residues, effectively avoiding secondary pollution to equipment and equipment. It is especially suitable for use in places with high cleanliness requirements such as data centers, libraries, and precision instrument rooms.

•Quick and efficient fire extinguishing

GQQ series cabinet fire extinguishing devices quickly release fire extinguishing agent when a fire occurs through the principle of chemical suppression and heat absorption. The fire extinguishing time is usually completed within ≤ 10 seconds, which effectively prevents the spread of fire sources and maximizes the damage to property and equipment caused by fire.

•Easy to install

The cabinet-type design does not require additional pipe network, and the equipment can be directly placed in the protection area, which is simple to install and has strong adaptability. There is no need to change the original structure of the protection area, and it can meet diverse site requirements, including scene applications for local protection and small area protection.

•Safe and reliable

The system is equipped with automatic monitoring and electromagnetic starting devices, which can monitor the protection area in real time. When a fire is detected, the device will automatically start to release fire extinguishing agent. The device is equipped with a safety relief valve to avoid equipment damage caused by high pressure and ensure the safety of use.

•Space saving

GQQ series cabinet fire extinguishing device integrates the storage and release functions of fire extinguishing agent, occupies a small area, and does not affect the normal use space of the protection area. Its compact design is suitable for spaces with small equipment spacing, maximizing the use of indoor space.

Product application range

· Computer room, communication room, program-controlled exchange room.

· Laboratory, precision instrument room, spraying workshop, chemical warehouse.

· Oil depot, clean workshop, electronic workshop, and other high-grade equipment room.

· Archives, libraries, museums, bill rooms, reference rooms, cultural centers, bank vaults.

· Generator room, power plant, distribution room, power room and other important places.

· Substation, transformer room (room) and other electrical rooms.

· Television broadcasting centers, financial institutions, government agencies, airports, buildings, wharfs, automobiles and other important places.
